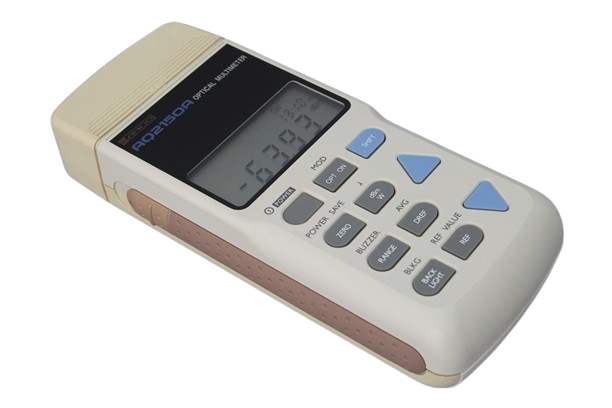

The Ando AQ2150 Optical Multimeter is a modular, handheld instrument for optical power and wavelength measurements in field and laboratory environments. Its interchangeable sensor, light source, and return loss units enable operation as an optical power meter, stabilized light source, loss test set, or return loss measurement system. Weighing approximately 450 g, the instrument operates on AA batteries, AC adapter, or optional Ni-Cd battery pack, eliminating external power dependencies for portable field work.
Technical Specifications
Optical Measurement Capability
• Wavelength range: 750 to 1800 nm (sensor dependent)
• Power range (CW light): −70 to +10 dBm
• Measurement accuracy: ±5% at −20 dBm
• Display resolution: Selectable 0.1 dB / 0.01 dB
Display & Interface
• 7-segment, 4-digit display with backlight on/off control
• Unit display modes: Absolute (dBm, mW, nW, pW) and Relative (dB)
• Auto power-off and selectable power-save modes
• Automatic zero adjustment with sensor blocking
– Key Features
• Modular architecture supports up to 8 LD/LED light source units
• Interchangeable sensor units accommodate multiple photodetector types
• Up to 2 return loss unit configurations
• Automatic and fixed measurement range toggle
• Lightweight design (450 g) for handheld field deployment
• Battery independence: AA, AC adapter, or Ni-Cd pack options
– Typical Applications
• Optical fiber loss measurement and characterization
• Optical component testing and validation
• Free-space beam power measurement
• Near-end fault localization on deployed fiber
• Return loss analysis for optical connectors and components
• High-output measurement across telecommunications and research networks
– Compatibility & Integration
Sensor Units: AQ2750, AQ2751, AQ2752, AQ2752B, AQ2753, AQ2755 (Ge 1 mm photodetector, 1310 nm reference wavelength)
Light Source Units: LD units AQ4211, AQ4212, AQ4213, AQ4214; LED units AQ4215; EE-LED units AQ4221
Return Loss Units: AQ9438 (FC connector, SM 10/125 µm fiber, ≥40 dB return loss, 0.2 dB insertion loss)
