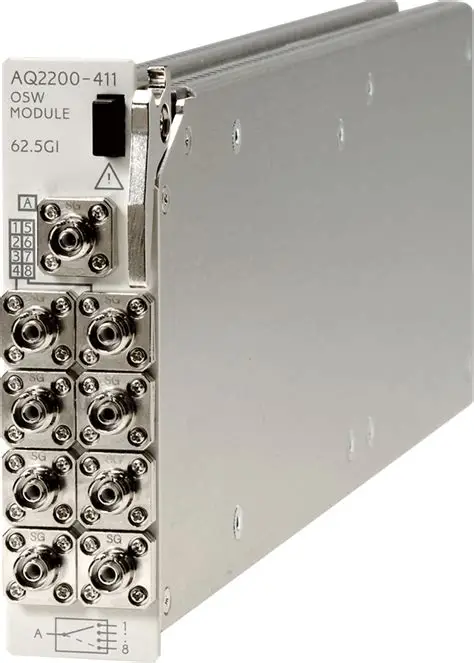

The Ando AQ2200-411-04-SA-FCC is an Optical Switch (OSW) module for the Yokogawa AQ2200 Multi Application Test System, delivering efficient optical signal routing across diverse test configurations. This two-slot module enables flexible switching between multiple optical paths, supporting both single-mode and multi-mode fiber architectures. Engineers integrate it with complementary AQ2200 instruments—light sources, optical sensors, attenuators, and transceiver interfaces—to build tailored measurement solutions for optical communication systems and component characterization.
Technical Specifications
• Module Type: Optical Switch (OSW)
• Model: AQ2200-411
• Switch Configurations: 1×4 type, 1×8 type
• Fiber Support: Single Mode Fiber (SMF); Multi-Mode Fiber (GI 50/125 µm, GI 62.5/125 µm)
• Connector Type: FC/PC (-FCC suffix)
• Insertion Loss: 1.0 dB (typ.)
• Switching Reproducibility: ±0.01 dB
• Form Factor: Two-slot module for AQ2200 frame controller
– Key Features
• Low insertion loss minimizes signal degradation in optical routing paths
• Tight switching reproducibility (±0.01 dB) ensures measurement consistency across repeated switching cycles
• Compact two-slot design optimizes frame real estate in AQ2200 controllers
• Supports both single-mode and multi-mode fiber types, accommodating diverse optical topologies
– Typical Applications
• Automated optical component testing and characterization
• Multi-channel optical signal routing in laboratory and production environments
• Optical communication system validation and performance measurement
• Flexible test setup reconfiguration without physical rewiring
– Compatibility & Integration
The AQ2200-411-04-SA-FCC integrates within the Yokogawa AQ2200 ecosystem. It occupies two slots in AQ2211 (3-slot) and AQ2212 (9-slot) frame controllers. Pair it with light sources, optical sensors, attenuators, and transceiver interfaces to create modular measurement systems tailored to specific optical testing requirements.
