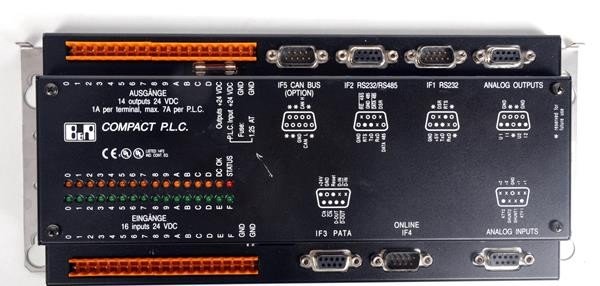

The B&R Automation BRCOMP1-0 is a compact PLC controller engineered for industrial automation requiring flexible I/O and multi-protocol connectivity. Built on a 6303 processor, it delivers instruction execution at approximately 4 msec per K instruction and operates from a 24 VDC supply drawing 6.5 W. The controller combines 16 KByte application EEPROM, 16 KByte expansion EEPROM, and 16 KByte instruction SRAM to support complex automation logic.
## Technical Specifications
**Processing & Memory**
• 6303 processor
• 16 KByte application EEPROM
• 16 KByte expansion EEPROM
• 16 KByte instruction SRAM
• ~4 msec per K instruction execution time
**Digital I/O**
• 16 digital inputs: 24 VDC, 2 msec response, sink configuration
• 4 inputs function as counter inputs up to 20 kHz
• 14 transistor outputs: 24 VDC, 1 A per output
**Analog I/O**
• 2 analog inputs: 16-bit resolution, configurable per channel (±10 V, 0–20 mA, KTY10 sensor −50 to +150 °C, 0–65 kOhm resistance)
• 2 analog outputs: 12-bit resolution (±10 V or 0–20 mA based on connection)
**Communication Interfaces**
• RS232 Serial Interface 1 (non-isolated)
• RS232/RS485 Serial Interface 2 (RS485 electrically isolated, network-capable)
• PATA interface for MINICONTROL operator panel
• TTY Online interface with isolated receiver
• SSI interface for absolute encoder connection
• B&R Online interface
• B&R MININET RS485 network capability
**Power & Environment**
• 24 VDC supply, 6.5 W consumption (without panel)
• Certifications: CE, UL, HazLoc
• Dimensions: 27.9 cm × 12.7 cm × 5.1 cm
• Weight: 1.1 kg
## Key Features
• Event counter and interrupt input capability
• Reference input and positioning channels (A & B)
• Optional relay expansion card (BRADREL1-0): 16 relay outputs, 3 A per output / 6 A per group, 240 VAC / 30 VDC switching
• Sink-configured digital inputs with fast 2 msec response
• Multi-range analog input conditioning
## Typical Applications
Machine control, process automation, networked industrial systems, encoder-based positioning, and hazardous location installations requiring certified control architecture.
## Compatibility & Integration
Functions within B&R automation ecosystems via MININET RS485 networking and integrates directly with MINICONTROL operator panels through dedicated PATA connectivity.
