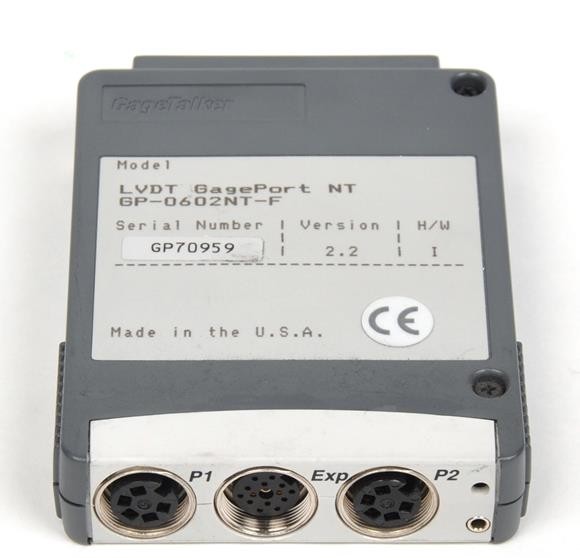

The CimWorks/GageTalker LVDT GP-0602NT-F is a data acquisition interface module that converts analog LVDT sensor signals into ASCII digital format for direct integration with host computers. This GagePort-NT module bridges traditional analog linear measurement sensors with modern digital systems, enabling data input into PC programs without requiring software modification. The module functions as a component within the GagePort-NT Universal Gage Interface family, supporting Full Bridge LVDT configurations and utilizing a software wedge for keyboard buffer input.
## Technical Specifications
• **Sensor Type:** Full Bridge LVDT (Linear Variable Differential Transformer)
• **Input Signal:** Analog LVDT sensor data
• **Output Format:** ASCII
• **Module Architecture:** Component of GagePort-NT Universal Gage Interface system
• **Inter-module Connectivity:** Supports interconnection between GagePort modules
## Key Features
• Direct ASCII conversion of LVDT analog signals
• Software wedge integration for transparent PC program input
• Existing software compatibility—no code modification required
• Module-based design for scalable multi-sensor configurations
• Support for Full Bridge LVDT sensor topologies
## Typical Applications
• **Industrial Automation:** Precise linear measurement data collection for process control
• **Quality Control:** Real-time dimensional inspection and data logging
• **Laboratory Testing:** Research and development measurement acquisition
• **Measurement & Control:** Integration of linear displacement data into automated systems
## Compatibility & Integration
The GP-0602NT-F module operates within the broader GagePort-NT ecosystem, which also supports digital, BCD, and strain gage sensor inputs through dedicated modules. Direct PC integration via ASCII output ensures compatibility with legacy and modern data acquisition software. The modular design allows stacking or interconnection of multiple GagePort-NT modules for multi-channel LVDT applications.
