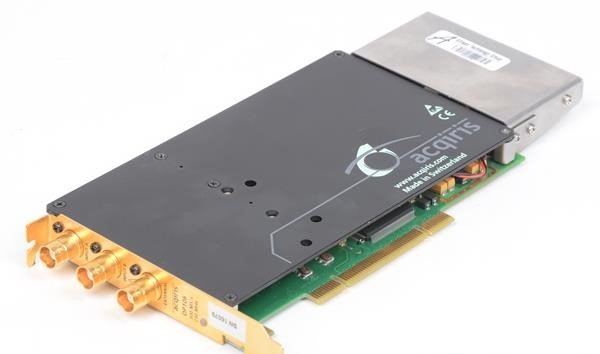

The Acqiris DP106 / U1091A-002 is a single-slot PCI digitizer card engineered for high-speed data acquisition with oscilloscope-grade signal fidelity. It delivers 8-bit resolution at sampling rates up to 2 GS/s across a DC to 500 MHz bandwidth, making it ideal for precision waveform capture in automated test systems, scientific instrumentation, and research environments.
Technical Specifications
• Sampling Rate: Up to 2 GS/s
• Resolution: 8-bit
• Bandwidth: DC to 500 MHz
• Acquisition Memory: 256 kSample
• Clock Accuracy: ±50 ppm
• DC Accuracy: < ±2%
• Input Impedance: Selectable 50 Ω and 1 MΩ
• Input Voltage Range: Programmable via front-end electronics
• Power Consumption: < 15 W
• Form Factor: Single Slot PCI Short Card
– Key Features
• Mezzanine front-end with input protection and internal calibration
• Complete pre- and post-triggering with user-selectable coupling
• Internal or external trigger sources with precision timing adjustment
• Integrated Trigger Time Interpolator (TTI) providing 5 ps timing resolution
• Sequential recording with time stamps and < 800 ns dead time
• Programmable input ranges via full front-end amplification
• Optional cooling via Acqiris XP100 fan attachment
– Typical Applications
• Automated test systems
• Scientific instrumentation and research
• Biotechnology and semiconductor testing
• Aerospace and physics instrumentation
• Astronomy data acquisition
– Compatibility & Integration
Device drivers support Windows, VxWorks, LabVIEW RT, and Linux environments. Application code examples provided for MATLAB, C/C++, Visual Basic, LabVIEW, and LabWindows/CVI. Graphical user interface and Soft Front Panel deliver scope-like waveform capture and display in time and frequency domains. PCI bus interface enables integration into existing system architectures.
