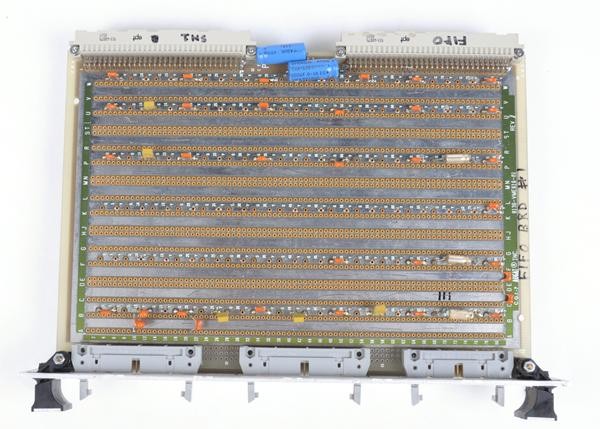

The dataCon/Augat VME616-01 is an 8136 wire wrap board engineered for VMEbus system prototyping and custom circuit development. Featuring multilayer construction and three 34-pin IDE connectors, this board delivers a flexible platform for complex electronic designs requiring secure, reliable interconnections. The VME616-01 accommodates high-speed device integration and supports multiple pin patterns—RDU, HVU, HDU, and PGU—enabling diverse component placement strategies and signal routing topologies.
## Technical Specifications
• **Manufacturer:** dataCon / Augat
• **Product Name:** VME616-01 8136 Wire Wrap Board
• **Series:** VME616
• **Board Type:** Wire Wrap Board
• **Construction:** Multilayer
• **System Compatibility:** VMEbus
• **Connectors:** Three 34-pin IDE connectors
• **Pin Patterns:** RDU, HVU, HDU, PGU
## Key Features
• Multilayer construction for signal integrity and component density
• Three 34-pin IDE connectors for flexible I/O configuration
• Multiple pin pattern support accommodates varied component requirements
• Wire-wrap architecture enables iterative circuit design and field modifications
• VMEbus form factor integration without external adapters or converters
## Typical Applications
• Custom logic implementation in VMEbus architectures
• High-speed device prototyping and validation
• Specialized I/O interface development
• Custom signal processing and control circuits
• Systems requiring iterative debugging and field reconfiguration
• Complex multi-layer interconnection schemes
## Compatibility & Integration
The VME616-01 integrates directly into standard VMEbus system specifications. Its mechanical form factor and connector topology align with VMEbus mechanical and electrical standards, enabling deployment in existing VME chassis and backplane environments without modification.
