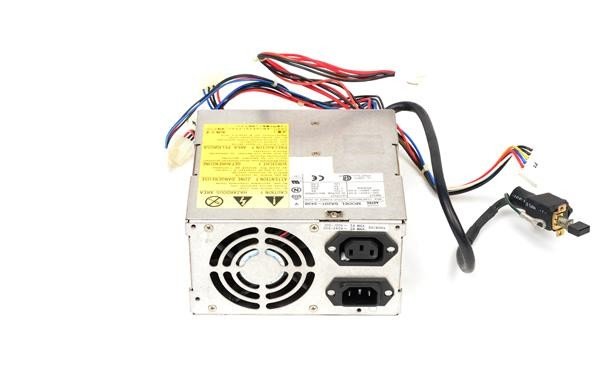

The Emerson/Artesyn/Astec SA201-3438 is a 200-watt industrial power supply engineered for Pro-Face and Xycom industrial computer platforms. Built to operate across 100–240 VAC input with 50/60 Hz operation, it delivers 6–8 amperes output current and maintains performance across demanding temperature ranges. The unit weighs 3.35 lbs and includes active power factor correction exceeding 0.90, output overcurrent protection, thermal protection, and intelligent fan control. It operates continuously from −25 °C to +60 °C at full power, with linear derating to half power between +60 °C and +70 °C. Storage rating extends to −40 °C to +85 °C. A 5 V standby output and zero minimum load requirement support flexible system configurations.
## Technical Specifications
• Output Power: 200 W
• Input Voltage: 100–240 VAC, 50/60 Hz
• Input Current: 100–120 V~ 8.0 A / 3 A Max
• Output Current: 6–8 A
• Power Factor Correction: Active PFC >0.90
• Operating Temperature: −25 °C to +60 °C (full power); linear derating to half power from +60 °C to +70 °C
• Storage Temperature: −40 °C to +85 °C
• Weight: 3.35 lbs
• Standby Output: 5 V
## Key Features
• Modular design for component accessibility
• Continuous current overload with reliable fuse tripping
• Output overcurrent protection
• Thermal protection circuitry
• No minimum load restrictions
• Intelligent fan control for thermal management
## Typical Applications
• Industrial computer power delivery
• Harsh environment installations
• Systems requiring extended temperature operation
• Applications demanding high availability and protection redundancy
## Compatibility & Integration
• Pro-Face/Xycom 9465 Series
• 9465KPM, 9465-KPM, 9465KPMT, 9465-KPM-T systems
