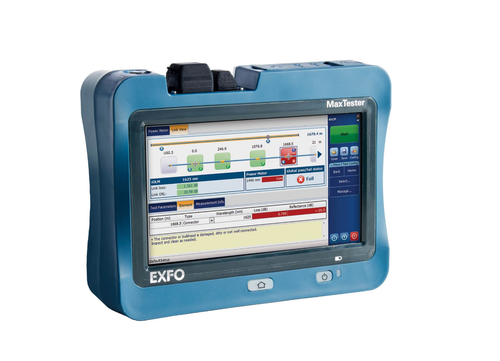

The Exfo FG-720-003M is a stand-alone remote Optical Time Domain Reflectometer (OTDR) operating at 1550 nm for continuous monitoring and fault detection in critical optical fiber networks. This unit delivers all-in-one OTDR testing and monitoring without the capital expense of a full client-server remote fiber test system. The FG-720-003M supports multiple test modes—manual, on-demand, 24/7 continuous monitoring, and scheduled intervals (hourly, daily, weekly)—with SMS-triggered testing and alert capabilities for fault conditions and resolutions.
## Technical Specifications
• **Wavelength:** 1550 nm
• **Dynamic Range:** 38 dB (SM OTDR, metro)
• **Signal-to-Noise Ratio:** 3 min. average using 20 µs pulse width
• **High Resolution Scans:** 1 m
• **Data Storage:** 80 GB local capacity with RAID protection
• **Operating Temperature:** 0 °C to 50 °C
• **Physical Dimensions:** 44 mm H × 427 mm W × 312 mm D
• **Weight:** 13 kg
## Key Features
• Reference condition recording on each connected fiber with automated deviation detection and precise fault localization
• Peak-level monitoring for degradation measurement with machine-learning optimization of fault-detection thresholds
• Season-change management for threshold adaptation across environmental variations
• Flexible alert subsystem with notifications via e-mail, SMS, and SNMP
• Multi-user capable with discovery and auto-provisioning functions
• Plug-and-play deployment requiring minimal configuration expertise
## Typical Applications
• Long-term fiber health monitoring in metro and long-haul networks
• Unplanned fault detection and rapid response notification
• Scheduled preventative testing with automated baseline tracking
• Remote sites requiring autonomous monitoring without external test infrastructure
## Compatibility & Integration
• Network integration via configurable DHCP or fixed IP addressing
• LAN integration with secure communications
• Rackmount-ready with supplied kit
• CE, CSA-UL, and RoHS certified; ISO 9001 manufacturer compliance
