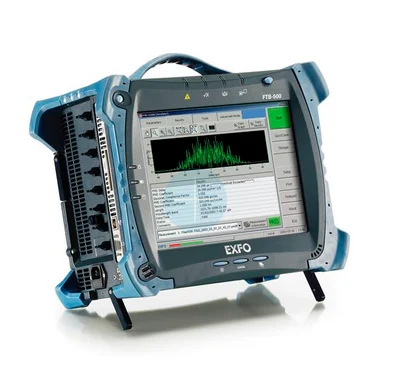

The EXFO FTB-5800 Chromatic Dispersion Analyzer is a high-performance module for precise characterization of chromatic dispersion in optical fibers across 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s applications. Using the phase-shift measurement method, it analyzes phase variations at fixed frequencies to calculate CD with exceptional repeatability. The analyzer’s “no communication” architecture between source and receiver enables testing of complete fiber links, including through cascaded amplifiers and one-way devices like EDFAs, without compromising measurement accuracy.
## Technical Specifications
• **Measurement Method:** Phase-shift method
• **Data Rates:** 10 Gbit/s (OC-192/STM-64), 40 Gbit/s (OC-768/STM-256), 100 Gbit/s ready
• **Wavelength Range:** C and L bands
• **Dispersion Repeatability:** ≤0.04 ps/nm
• **Zero-Dispersion Wavelength (λ₀) Repeatability:** ≤0.1 nm
• **Dispersion Slope Repeatability at λ₀:** ≤0.03 (%)
• **Measurement Time:** <1 second per point
• **Fiber Length Range:** 5400 km
• **Dynamic Range:** 47 dB (with FLS-5800 source)
• **Maximum Cascaded Amplifiers:** 250 over >12,000 km link length
## Key Features
• Tests complete optical links without sectioning, eliminating cumulative error
• Field-ready deployment reduces measurement time and manipulation errors
• Intuitive software for real-time acquisition, analysis, and data visualization
• FastReporter offline analysis tool with PDF, Excel, and HTML report generation
• Customizable threshold detection for dispersion and slope parameters at λ₀
• Compatible with all fiber types
## Typical Applications
• Network commissioning and acceptance testing at multiple data rates
• Troubleshooting transmission impairments caused by chromatic dispersion
• Maintenance and long-term monitoring of installed fiber routes
• Performance verification through EDFAs and amplified spans
• Validation of nonlinear effect compensation strategies
## Compatibility & Integration
Designed as a four-slot module for EXFO FTB-200 and FTB-500 platforms, with compatibility extended to FTB-400 Universal Test System and FTB-4 Pro platform. Allows simultaneous multi-parameter testing within host platforms.
