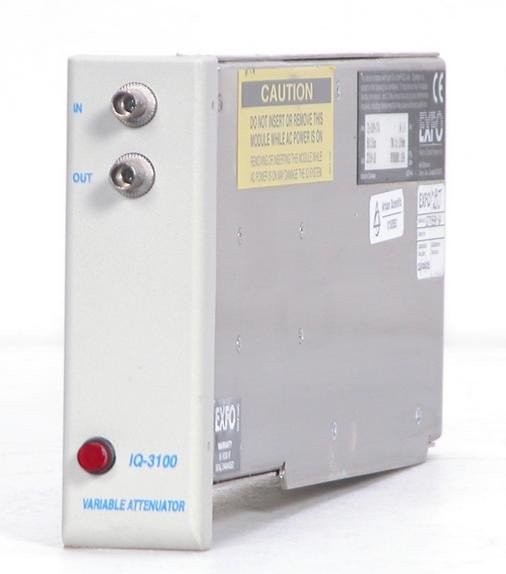

The Exfo IQ-3100-BWEI is a variable attenuator module engineered for precise optical power control within IQ-2000 and IQ-3000 series test platforms. It delivers sub-dB resolution and exceptional repeatability across a broad wavelength range, enabling accurate receiver sensitivity testing, dynamic range verification, and optical margin analysis. The module supports multiple attenuation modes and programmable step sequences, with remote control via GPIB and LabVIEW drivers.
## Technical Specifications
• **Wavelength Range:** 1200 nm to 1650 nm
• **Fiber Type:** 9/125 µm singlemode
• **Spectral Resolution:** > 0.1 nm
• **Optical Resolution:** 0.005 dB
• **Maximum Attenuation:**
– > 100 dB (1200–1350 nm)
– > 80 dB (1350–1600 nm)
– > 70 dB (1600–1650 nm)
• **Insertion Loss:** 1.5 dB typical; 1.8 dB maximum
• **Linearity:** ± 0.1 dB
• **Repeatability:** ± 0.03 dB maximum
• **Spectral Uniformity:** ± 0.1 dB
• **Return Loss:** > 55 dB typical
• **Maximum Input Power:** 25 dBm
• **Polarization Dependent Loss:** 0.2 dB max @ 20 dB attenuation; 0.3 dB max @ 50 dB attenuation
• **Shutter Isolation:** > 100 dB
• **Operating Temperature:** Calibrated 0 °C to 31 °C; performance degrades linearly to ~50% at 40 °C
## Key Features
• Supports absolute, relative, and X+B attenuation modes
• Programmable step cycling: up to 100 attenuation steps with configurable dwell times
• Universal EXFO connectors with PC/UPC interface
• Remote operation via GPIB command structure
• LabVIEW drivers and OCX controls included
## Typical Applications
BER testing, EDFA characterization, component and system loss simulation, power-level monitoring, instrument calibration, linearity measurement, spectral tuning, and WDM/OFA characterization.
## Compatibility & Integration
One-slot module for Exfo IQ-203, IQ-206, IQS-510P, and IQS-510E mainframes. ISO 9001 certified; FCC Part 15 compliant.
