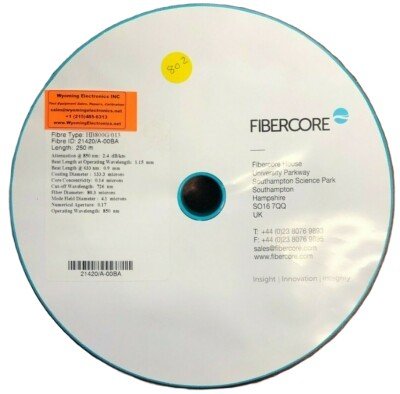

The Fibercore PM Gyro HB800G/013 is a polarization-maintaining optical fiber engineered for high-precision fiber optic gyroscopes. This 250-meter spool delivers exceptional birefringence stability and polarization extinction ratio performance across demanding aerospace, navigation, and defense applications. The /013 variant features a reduced 135 ± 2 µm coating diameter, optimizing coil winding density while maintaining polarization integrity from -55°C to +85°C operating range.
Technical Specifications
• Fiber Type: Polarization-Maintaining Gyro Fiber (HB800G series)
• Operating Wavelength: 810–1000 nm
• Nominal Wavelength: 830 nm
• Cut-Off Wavelength: 660–800 nm
• Cladding Diameter: 80 ± 1 µm
• Core-Cladding Concentricity: ≤ 1.0 µm
• Coating Diameter: 135 ± 2 µm (HB800G-SB/013)
• Coating Type: Dual-Layer Acrylate
• Numerical Aperture (NA): 0.14–0.18
• Mode Field Diameter (MFD): 4.2 µm typical @ 830 nm
• Attenuation: ≤ 5 dB/km @ 830 nm
• Beat Length: ≤ 1.0 mm @ 633 nm (Short Beat-Length variant)
• Polarization Extinction Ratio (PER): >30 dB @ -55°C; >28 dB @ -60°C
• Operating Temperature Range (in-coil): -55°C to +85°C
• Proof Test: 1 or 2 (100 or 200 kpsi) or greater upon request
– Key Features
• Bow-Tie stress-applying elements maximize birefringence for superior PER stability across temperature
• Reduced 135 µm coating diameter enables longer coil lengths in compact packages
• Tight coating diameter tolerances (±2 µm) support precision high-speed winding
• Maintains polarization state across full operating temperature envelope
– Typical Applications
• Fiber Optic Gyroscopes (FOGs)
• Inertial Navigation Systems
• Aerospace and Defense Systems
• Current Sensors
• Delay Lines
– Compatibility & Integration
Designed as a drop-in replacement within the HB800G PM gyro fiber family. The SB/013 variant optimizes performance where highest PER and compact coil geometry are required.
