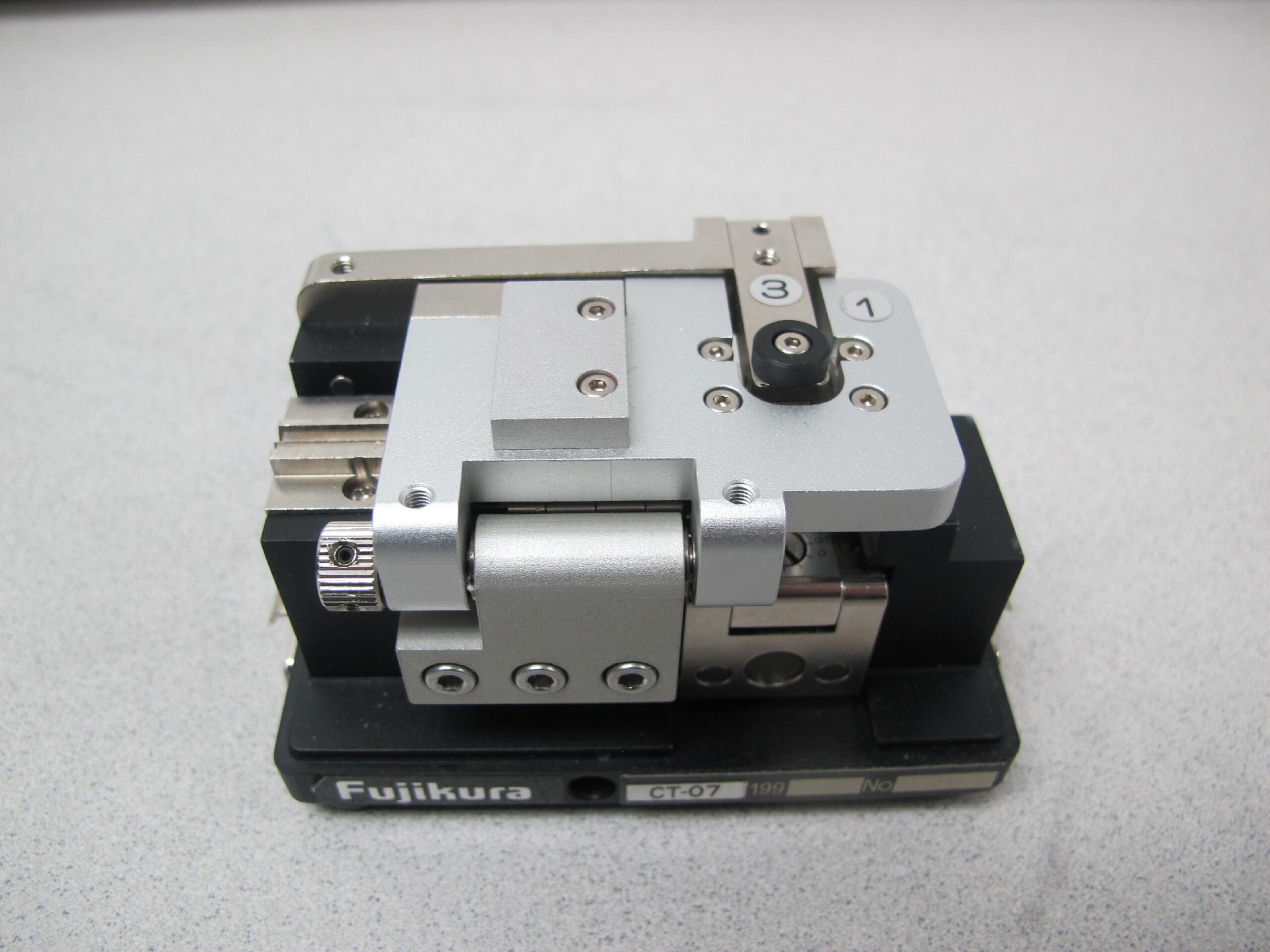

The Fujikura CT-07BS is a high-precision fiber optic cleaver engineered for single-fiber cleaving applications in field and manufacturing environments. It delivers accurate, consistent cleaves essential for high-quality fiber splicing and termination through a rotating blade mechanism that extends tool life and maintains performance across thousands of cleaving cycles.
## Technical Specifications
• **Applicable Fiber:** Conventional silica optical fiber, 125 µm cladding diameter
• **Fiber Coating Diameter:** Guide A: 0.25 mm; Guide B: 0.9 mm
• **Cleaved Length:** Guide A: 6–20 mm; Guide B: 10–20 mm
• **Blade Positions:** 12 rotational positions
• **Blade Height Position:** 1 fixed position
• **Total Cleaves per Blade:** 12,000
• **Fiber Count:** Single fiber
• **Dimensions:** Approximately 90 mm × 55 mm × 55 mm
• **Weight:** Approximately 500 g
## Key Features
• Rotating blade mechanism with 12 active positions enables extended blade life and consistent cleave quality
• Dual guide system accommodates coating diameters from 0.25 mm to 0.9 mm for flexible fiber handling
• Single-fiber cleaving architecture ensures precision on individual optical fibers
• Rugged, self-contained design minimizes operator-skill dependency
• Compact footprint suitable for field deployment and integration into production workflows
## Typical Applications
• Fiber splicing preparation
• Fiber termination and connector assembly
• Optical component manufacturing
• Field service and installation
## Compatibility & Integration
The CT-07BS is based on the CT-04B platform and accepts the AD-07 adapter plate for system configuration. Replacement blades are available for both CT-04 and CT-07 series models, ensuring long-term serviceability.
