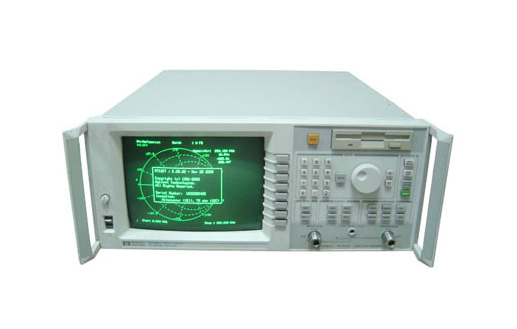

The HP/Agilent 8712B is a single-unit RF network analyzer combining synthesized source, transmission/reflection test set, and dual-mode receivers for production-grade S-parameter and impedance characterization. Operating from 300 kHz to 1.3 GHz, it delivers fast measurements with >100 dB narrowband dynamic range, automated calibration correction, and integrated data storage. Purpose-built for manufacturing test, incoming inspection, and field maintenance of RF components and systems.
Technical Specifications
Frequency & Source
• Frequency range: 300 kHz to 1.3 GHz
• Frequency resolution: 1 Hz
• Sweep time: 50 ms or faster
• Source output power: Up to +16 dBm
• Damage level: +23 dBm
Measurement Performance
• Narrowband dynamic range: >100 dB
• Maximum input power: +10 dBm (narrowband)
• Residual AM: <–50 dBc
• Residual FM: <1.5 kHz
• Harmonics: <–20 dBc (1 MHz and below); <–30 dBc (above 1 MHz)
• IF bandwidth: 15 Hz
• Amplitude display resolution: 0.01 dB/division
• Phase range: ±180°; display resolution 0.1°/division
• Delay accuracy: ±10 ns (0 to 10 dB range)
Calibration & Correction
• Internal factory calibration with normalization to external standards
• Directivity correction: Up to 40 dB
• Source match correction: Up to 20 dB
Display & Data
• Dual independent measurement channels with CRT display
• Format options: Rectangular, polar, Smith chart, overlay, split-screen
• Over 100 internal save-recall registers
• 3.5-inch floppy disk drive (LIF/DOS formats)
• Non-volatile and volatile memory
– Key Features
• S-parameter, insertion loss, impedance, and transmission/reflection analysis
• Power sweep capability for amplifier gain compression testing
• User-defined limit testing with on-screen pass/fail results
• Narrowband and broadband detection modes
• Marker reference levels: ±500 dB (amplitude), ±360° (phase)
– Typical Applications
• Production measurement of RF component insertion loss and return loss
• Amplifier characterization and compression testing
• Filter and transmission line impedance verification
• Incoming inspection of passive and active RF devices
• Field maintenance and troubleshooting
– Compatibility & Integration
• GPIB (IEEE 488.2) for instrument control and data transfer
• RS-232C serial interface
• Centronics parallel for printer output
• HP-GL plotter output via GPIB, parallel, and serial
