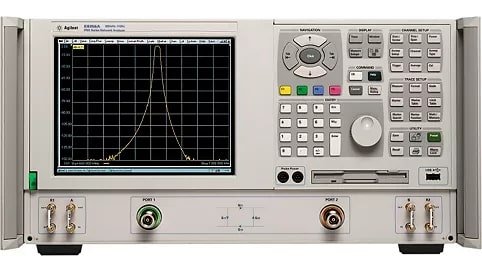

The Keysight E8364A PNA Series Network Analyzer is a high-performance instrument for precise RF and microwave device characterization across 45 MHz to 50 GHz. Built for demanding R&D and manufacturing environments, it delivers fast sweep speeds, exceptional dynamic range, and low trace noise for comprehensive S-parameter, impedance, and time-domain measurements. The analyzer supports sixteen independent measurement channels with sweep rates below 26 µs/point and offers TRL/LRM calibration for waveguide, on-wafer, and in-fixture devices.
Technical Specifications
• Frequency Range: 45 MHz to 50 GHz
• Dynamic Range: 123 dB at test port; 138 dB with direct receiver access; 104 dB at test port at 50 GHz
• Sweep Speed: Less than 26 µs/point
• Maximum Output Power: 10 dBm
• Measurement Channels: Sixteen independent channels
• Memory: 256 MB RAM with built-in hard drive storage
• Test Port Connectors: 3.5 mm (m), 50 ohm
• Physical: 26 × 24 × 18 in; 50 lbs
– Key Features
• Fast sweep speeds and low trace noise enable efficient device characterization
• Wide dynamic range accommodates passive and active component testing
• TRL/LRM calibration support for complex measurement environments
• Sixteen measurement channels support multi-port and multi-parameter analysis
• Optional source attenuators, bias-tees, and direct receiver access for extended capability
• Ruggedized 3.5 mm connectors rated for 50 ohm impedance
– Typical Applications
• S-parameter characterization of RF and microwave components
• Time-domain and frequency-offset measurements
• Scalar-calibrated converter measurements
• N-port network analysis
• On-wafer and in-fixture device testing
– Compatibility & Integration
• COM/DCOM and SCPI programming interfaces
• USB and LAN connectivity for data transfer and remote control
• Compatible with 45 MHz to 50 GHz calibration kits (e.g., 85057B 2.4 mm)
• Optional time-domain, frequency-offset, and N-port measurement packages
• AgileUpdate feature enables access to new functionality
