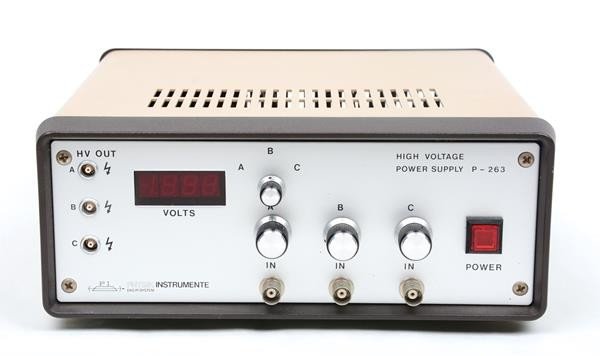

The Physik Instrumente P-263 is a 3-channel high-voltage power supply engineered for precision micro-positioning systems. It delivers independent control across three output channels, enabling multi-axis piezoelectric actuator operation in XY and XYZ positioning configurations. The unit accepts 120V input and generates high-voltage outputs suitable for dynamic positioning, vibration damping, and force generation tasks. Built to EN 61010-1 safety and EN 61326-1 EMC standards, the P-263 integrates directly with PI piezo stages for closed-loop or open-loop micro-positioning applications requiring synchronized multi-axis control.
Technical Specifications
• Channels: 3 independent high-voltage output channels
• Input Voltage: 120V
• Output Type: High-voltage DC for piezoelectric actuators
• Safety & EMC: EN 61010-1, EN 61326-1 compliance
– Key Features
• Three independently controlled output channels for multi-axis systems
• Direct compatibility with Physik Instrumente P281 and P282 piezo stages
• Dedicated high-voltage architecture for piezoelectric device operation
• System-level integration for safety-critical positioning environments
– Typical Applications
• XY and XYZ micro-positioning systems
• Piezoelectric actuator control
• Dynamic load positioning
• Precision vibration damping
• Fine-force generation in laboratory and industrial settings
– Compatibility & Integration
The P-263 interfaces with Physik Instrumente piezo stages and positioning systems. Control of the three output channels integrates with PI control architectures and the PI Software Suite for automated multi-axis coordination. The unit is designed as a subsystem component within larger measurement and positioning platforms subject to laboratory and industrial safety regulations.
