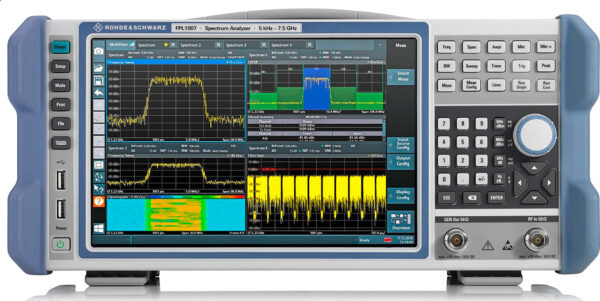

The Rohde & Schwarz FPL1014 is a benchtop spectrum analyzer covering 5 kHz to 14 GHz, engineered for signal analysis, research, and production testing. Its 10.1″ multi-touch display and 6 kg weight enable deployment across laboratory, manufacturing, and field service environments. The instrument combines spectrum analysis with power measurement, analog demodulation, and digital signal analysis capabilities through optional software integration.
Technical Specifications
Frequency Range: 5 kHz to 14 GHz
Analysis Bandwidth: 10 MHz or 12.8 MHz standard; optional 40 MHz
Resolution Bandwidth (RBW, -3 dB): 1 Hz to 10 MHz with 1/2/3/5 sequences
Phase Noise: Typically -108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
Displayed Average Noise Level (DANL): Typically -160 dBm to -163 dBm (10 MHz to 2 GHz with preamplifier); intrinsic noise display typically -166 dBm
Third-Order Intercept Point (TOI): Typically +20 dBm (300 MHz to 3 GHz)
Maximum Input Power: +30 dBm
Spurious Response: -70 dBc (up to 10 MHz offset); -80 dBc (higher offsets)
Amplitude Accuracy: Less than 0.3 dB nominal
Marker Resolution: 0.01 Hz
Display: 10.1″ multi-touch screen, 1280 × 800 pixels, 21 cm diagonal TFT color display with gesture support
Physical: 408 mm (W) × 186 mm (H) × 235 mm (D); 6 kg base weight; 7.3 kg with battery
– Key Features
• Smallest footprint in its class with compact 6 kg profile
• Preamplifier option for DANL down to -163 dBm/Hz
• Optional 40 MHz analysis bandwidth for wider signal capture
• Marker resolution to 0.01 Hz for precise frequency identification
• Maximum input handling at +30 dBm prevents front-end damage
• Multiple connectivity: 4 × USB 2.0, LAN (10/100/1000BASE-T), DVI-D, external trigger, optional GPIB
– Measurement Capabilities
Spectrum analysis, ACLR, C/N, C/N0, OBW, harmonic distortion, and TOI measurements. Analog demodulation via optional software; digital signal analysis through Vector Signal Explorer (VSE). Power measurement integration via external power sensors.
– Power & Interfaces
100–240 V AC (50/60/400 Hz) mains operation. Optional lithium-ion battery provides over 3 hours nominal runtime. Optional 12 V/24 V DC and dedicated DC supplies (FPL1-B30) available. Optional OCXO reference frequency (FPL1-B4) for enhanced stability.
