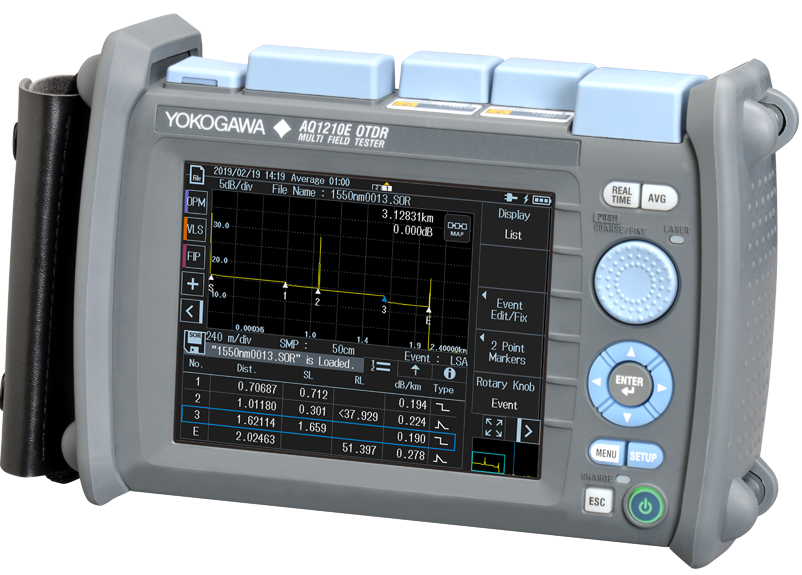

The Yokogawa AQ1210A is a dual-wavelength Optical Time Domain Reflectometer (OTDR) engineered for field characterization and troubleshooting of optical fiber networks. Operating at 1310 nm and 1550 nm with dynamic ranges of 37 dB and 35 dB respectively, it delivers high sampling resolution (5 cm) and short event dead zone (0.75 m) for precise near-end fault detection. The instrument weighs 1 kg and fits the footprint of a tablet, making it portable without sacrificing measurement capability.
Technical Specifications
• Wavelengths: 1310 nm / 1550 nm
• Dynamic Range: 37 dB (1310 nm), 35 dB (1550 nm)
• Event Dead Zone: 0.75 m
• Attenuation Dead Zone: 4 m
• Sampling Resolution: 5 cm
• Maximum Data Points: 256,000
• PON Characterization: Supports up to 1×128 splitters
• Battery Life: 10+ hours
• Battery Recharge Time: 5 hours
• Startup Time: Under 10 seconds
• Power Source: High-capacity Li-Ion polymer battery
– Key Features
• 5.7-inch color TFT LCD touchscreen (640×480) with glove-operable capacitive multi-touch and hard-key buttons
• Real-time, averaged, and full auto measurement modes
• Multi-trace, 2-way trace, and differential trace analysis
• Section analysis with return loss measurement
• Smart Mapper function with icon-based network visualization and PASS/FAIL judgment
• Data export: SOR, PDF, JPG, CSV, BMP, SET formats
• Wi-Fi and Ethernet connectivity for remote control and wireless data transfer
• USB Type-A, USB Type-C ports; external fiber inspection probe support
– Typical Applications
• PON installation and acceptance testing with high-port-count splitter characterization
• Multi-fiber network verification and fault location
• Event detection in congested fiber sections
• Field reporting with immediate PDF generation and email transmission
– Compatibility & Integration
Complies with EN61326-1 Class A, EN55011 Class A Group 1, and EN61326-1 Table 2 for industrial environments. Interfaces via Wi-Fi, Ethernet, and USB for integration with field service platforms and cloud storage systems.
