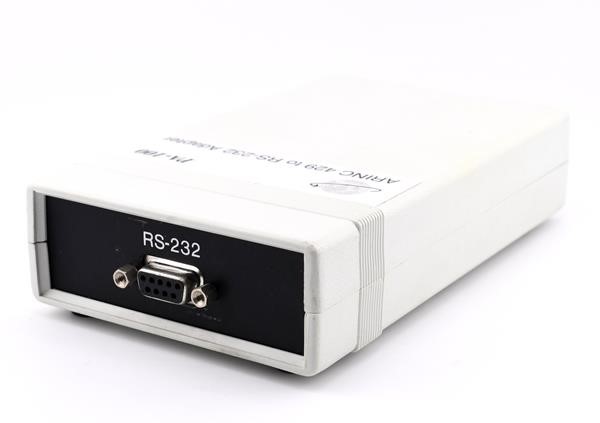

The Abaco Systems / Condor Engineering PA-100-1 is a portable ARINC 429 to RS-232 adapter that converts avionic databus signals into serial format for computer-based analysis and testing. The device bridges ARINC 429 networks with standard RS-232 interfaces, enabling real-time data acquisition, system integration, and field troubleshooting without dedicated avionics hardware.
Technical Specifications
• ARINC 429 Channels: Two receive channels; one or two transmit channels
• Bit Rate: Programmable; supports both high-speed and low-speed ARINC 429 operation
• Programmable Parameters: Bit rate, parity, slew rate, data filtering
• Interface: RS-232 serial port connection to host computer
• Power: International power converter available
– Key Features
• Dual ARINC 429 receive capability for simultaneous multi-source data monitoring
• Configurable transmit channels—single or dual configuration per application requirements
• Field-programmable operating parameters eliminate hardware reconfiguration
• Compact portable form factor suitable for laboratory and field deployment
• Multiple adapter support via available RS-232 ports on host system
– Typical Applications
• Avionic system testing and validation
• Real-time ARINC 429 databus monitoring
• Flight data analysis and troubleshooting
• Integration testing of avionics sub-systems
• Field-portable acquisition of aircraft system telemetry
– Compatibility & Integration
The PA-100-1 interfaces with any PC or notebook computer equipped with an RS-232 serial port. Multiple units can be cascaded across available serial interfaces to expand channel capacity. This approach enables modular test solutions without specialized avionics interfaces or proprietary software environments.
