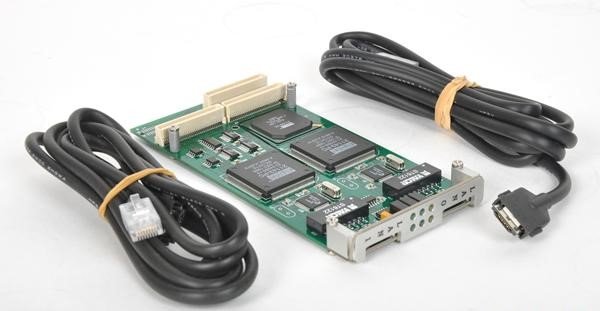

The Abaco Systems / Ramix PMC663 is a PCI Mezzanine Card (PMC) that delivers dual 10/100BaseTX Ethernet interfaces for high-performance network interconnects. Two independent 10/100BaseTX engines support full-duplex operation at 100 Mbps and 10 Mbps. An integrated DMA engine with deep FIFO buffers enables continuous, full-bandwidth data transfer with minimal PCI bus overhead. A PCI/PCI bridge optimizes performance and reduces host bus loading. Auto-negotiation automatically configures bandwidth and duplex settings for the highest available operating mode. The card complies with IEEE 1386 PMC standards and connects via RJ45 connectors. Two PMC663 boards directly cabled with a cross-over cable can establish a full-duplex 400 Mbps dedicated data path.

Technical Specifications

• Form Factor: PCI Mezzanine Card (PMC)
• Ethernet Interfaces: Dual 10/100BaseTX
• Ethernet Engines: Two 10/100BaseTX engines
• Operating Modes: 100 Mbps Full Duplex, 10 Mbps Full Duplex
• Physical Connectors: 2 × RJ45
• DMA Engine: Integrated with deep FIFO buffers
• PCI Bridge: Optimized for high performance and low PCI loading
• Operating Temperature: 0 °C to 60 °C
• Storage Temperature: −40 °C to 80 °C
• Relative Humidity: 10% to 90% non-condensing

– Key Features

• Auto-negotiation for automatic configuration of bandwidth and full duplex operation
• Direct memory access with substantial buffering for continuous full-bandwidth transfer
• Dual independent Ethernet engines for simultaneous network paths
• Inter-card connectivity: Two units connected via cross-over cable achieve 400 Mbps full-duplex dedicated data path

– Typical Applications

• Real-time deterministic networking
• High-performance embedded systems requiring dual Ethernet paths
• Mission-critical data interconnects in compact form factors

– Compatibility & Integration

• PCI Bus Compliance: IEEE 1386 (PMC) standard
• Software Support: VxWorks, pSOS, LynxOS, Digital Unix
• Host Interface: PCI bus with optimized loading characteristics
