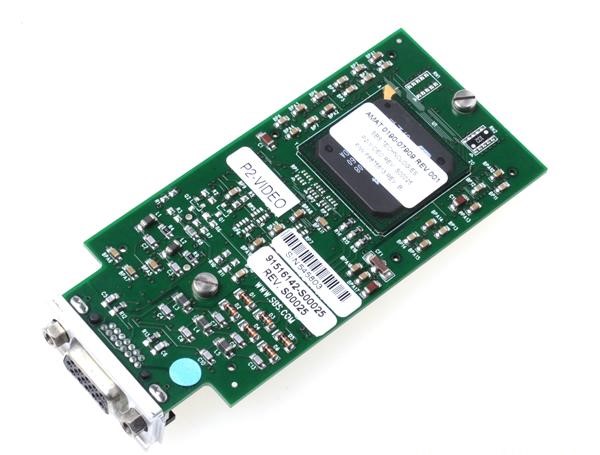

The Abaco Systems P2-Video is a PC-MIP mezzanine video graphics controller engineered for single-display CRT and LCD monitor applications. Built on the Silicon Motion LynxEM+4 chipset with 4 MB of on-chip SGRAM and a 128-bit memory bus, this module delivers SVGA graphics acceleration with hardware BitBLT support. The card supports 24-bit color depth at resolutions up to 1024×768 at 75 Hz, providing analog RGB output via a front-panel high-density DB15 connector. Convection cooling and optional conformal coating make it suitable for embedded and ruggedized system deployments.
Technical Specifications
• Chipset: Silicon Motion LynxEM+4
• Video Memory: 4 MB SGRAM on-chip
• Memory Bus Width: 128 bits
• Maximum Resolution: 1024×768 at 75 Hz with 24 bpp
• Color Depth: 24 bits per pixel
• Form Factor: PC-MIP mezzanine card
• Video Output Connector: High-density DB15 (SVGA/CRT analog RGB)
• Cooling Method: Convection
• Conformal Coating: Optional
– Key Features
• Hardware-accelerated graphics with BitBLT operations
• Single display configuration support
• Standard SVGA monitor compatibility
• Passive convection cooling—no active thermal management required
• Optional conformal coating for harsh environments
– Typical Applications
Mission-critical display systems in embedded platforms, industrial control terminals, and ruggedized computing environments requiring reliable single-monitor graphics output without active cooling dependencies.
– Compatibility & Integration
The P2-Video interfaces with any standard SVGA/CRT monitor equipped with a DB15 analog RGB connector. Integration into PC-MIP host systems is straightforward through the mezzanine card format.
