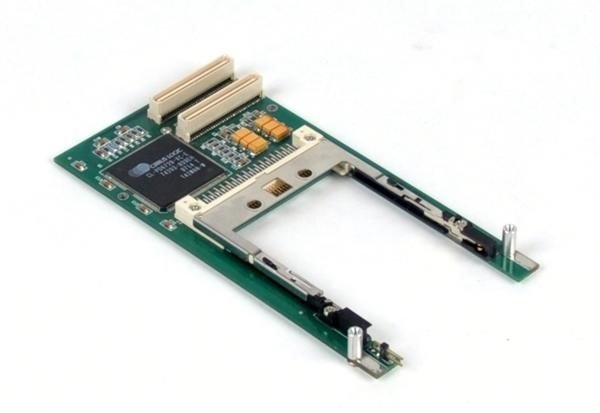

The Abaco Systems / Ramix PMC230A is a PCMCIA Host Bus Adapter that expands PMC-based single board computers and processors with legacy PCMCIA card functionality. It accommodates one Type I, Type II, or Type III PCMCIA card operating under PCMCIA Revision 2.1 standards, enabling integration of diverse I/O peripherals including Ethernet, FAX/Modem, GPIB, GPS, 1553, solid state disk, SRAM/FLASH memory, RS232, and rotary disk devices.
Technical Specifications
The PMC230A interfaces directly to PMC attachment points on host systems and supports PCMCIA Release 2.1 compliance. Full card detect hardware enables hot insertion and power-on reconfiguration without system interruption. The adapter features a recessed PCMCIA connector, providing mechanical protection and enhanced security for mission-critical deployments.
– Key Features
• Supports Type I, Type II, and Type III PCMCIA card form factors
• Recessed PCMCIA connector for environmental protection and security
• Full card detect hardware and software drivers for hot insertion capability
• PCMCIA Revision 2.1 compliance
• Integrated software licensing with each PCMCIA card purchase
– Software Support & Drivers
Complete driver support targets real-time and data acquisition applications. The adapter includes tailored drivers for VxWorks, Lynx, and pSOS real-time operating environments. Software licenses accompany each PCMCIA card purchase, eliminating separate licensing overhead. Full card detect software drivers enable dynamic card insertion, removal, and system reconfiguration without reboot cycles.
– Compatibility & Integration
The PMC230A integrates with any single board computer or processor featuring PMC attachment points. Its design supports standard real-time operating systems and embedded Linux environments where PMC slots are available. The recessed connector design suits ruggedized systems, aerospace platforms, and industrial control applications requiring mechanical durability and thermal stability.
