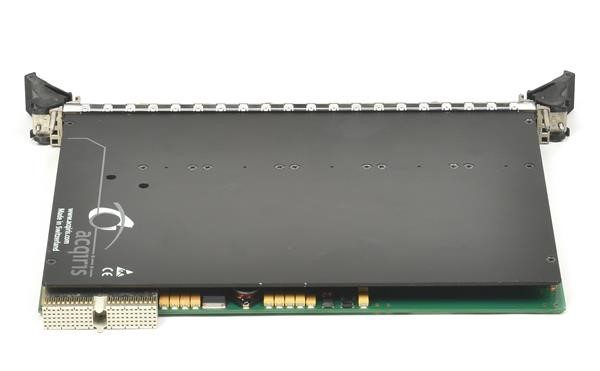

The Acqiris DC240 is a modular dual-channel CompactPCI digitizer engineered for high-speed data acquisition with oscilloscope-class signal fidelity. Operating at 2 GS/s sampling rate with 500 MHz bandwidth, this 6U CompactPCI module delivers simultaneous acquisition across both channels into 256 kpoints of memory per channel. Designed for system integration, it interfaces via 32-bit PCI bus at 33 MHz with data transfer rates to 520 MB/s and supports multi-module synchronization through ASBus/ASBus2 for expanded channel count.
Technical Specifications
• Sampling Rate: 2 GS/s (simultaneous, dual-channel)
• Bandwidth: 500 MHz
• Acquisition Memory: 256 kpoints per channel
• Input Impedance: 1 MΩ
• Maximum Input Amplitude: ±5 V
• Maximum Input Voltage (1 MΩ): ±100 V (dc + ac)
• External Clock Threshold: User-selectable, −3.0 V to +3.0 V
• Host Interface: PCI bus (32-bit, 33 MHz), 520 MB/s data transfer
• Power Consumption: Typical 15 W (single-channel 1 GS/s reference; DC240 consumption implied lower)
• Form Factor: 6U CompactPCI standard
– Key Features
• Dual simultaneous channels with independent acquisition paths
• Two data samples generated per sampling interval—acquisition and readout dimensioned for doubled data volume with drop/average options
• User-selectable clock threshold for external synchronization
• ASBus/ASBus2 multi-module synchronization for instrument-level integration
• Soft Front Panel graphical interface offering scope-like waveform display and control
– Typical Applications
• High-speed transient capture and signal characterization
• Multi-channel time-correlated measurements in modular crate systems
• System-level data acquisition with CompactPCI/PXI infrastructure
– Compatibility & Integration
Operates within CompactPCI/PXI crate platforms. Drivers, API, code examples, and documentation supplied. Compatible with Windows and Linux. Programming support includes Visual Basic and MATLAB environments. Soft Front Panel provides intuitive scope-style interface for waveform exploration and parameter adjustment.
