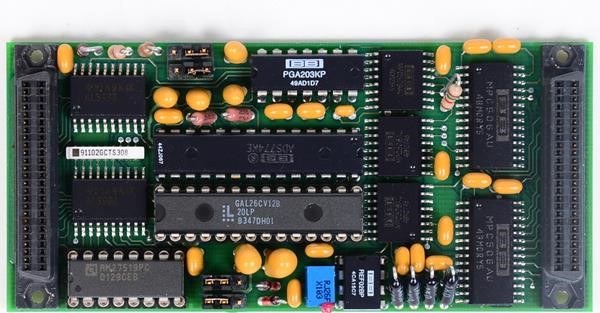

The Acromag IP320 is a 12-bit analog-to-digital input module engineered for high-density data acquisition in industrial process control, monitoring, and automation systems. It combines 40 single-ended or 20 differential input channels with successive approximation conversion at 8.5 µS per sample, delivering up to 100K samples per second. Four modules can cascade on a single carrier board for up to 160 single-ended inputs, making it ideal for distributed I/O applications requiring precision analog measurement across multiple voltage ranges and gain settings.
Technical Specifications
Analog Input Channels
• 40 single-ended or 20 differential channels per module
• Up to four modules per carrier board: 160 single-ended or 80 differential inputs
• Programmable channel selection via control register
ADC Performance
• 12-bit resolution
• Successive approximation architecture
• 8.5 µS conversion time
• 100K samples per second maximum throughput
• Programmable input gains: ×1, ×2, ×4, ×8
Input Voltage Ranges
• −5 V to +5 V
• −10 V to +10 V (requires ±15 V external supply; ±12 V supplies clip to ±9 V)
• 0 V to +10 V
Calibration & References
• On-board precision voltage references
• Software-calibrated via built-in calibration references
Power Consumption
• +5 V: 350 mA maximum
• ±12 V or ±15 V rails: 20 mA maximum each
Environmental
• Operating temperature: 0 °C to 70 °C
• Storage temperature: −40 °C to 100 °C
• Relative humidity: 5 % to 95 % non-condensing
• MTBF: 564,198 hours at 25 °C (MIL-HDBK-217F)
Physical
• Single-size Industry Pack form factor
• ANSI/VITA 4-1995 compliant
• 8 MHz clock; 250 nS cycle (0 wait states) for most operations; 375 nS for control register write; 625 nS for ADC read
– Key Features
• External hardware trigger input for event synchronization
• Software-initiated A/D conversion
• Supports IOSel* and IDSel* cycle types
• Multiple gain settings accommodate low-level and high-level signals without external conditioning
– Typical Applications
• Industrial process monitoring and control
• Multi-channel data acquisition systems
• Sensor signal conditioning and digitization
• Distributed I/O in automated manufacturing
– Compatibility & Integration
The IP320 integrates into any Industry Pack carrier board supporting ANSI/VITA 4-1995 modules. Stacking up to four units provides dense analog input capability within a single system slot, simplifying board-level integration for space-constrained applications.
