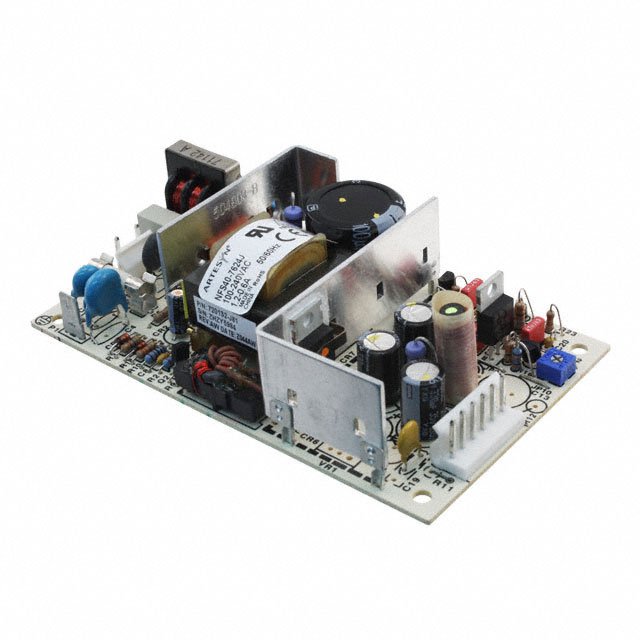

The Advanced Energy / Artesyn NFS40-7612 is a 40W open-frame AC-DC power supply engineered for industrial and commercial ITE applications. This single-output converter delivers +12V at 3.3A with universal input acceptance from 85–264 VAC or 120–370 VDC, making it suitable for diverse global power environments. The compact 5.00″ × 3.00″ × 1.20″ chassis-mount design fits 1U form factors while maintaining 70% typical efficiency and supports both free-air and forced-air cooling scenarios.
Technical Specifications
• Output: +12V @ 3.3A, single output
• Input Range: 85–264 VAC or 120–370 VDC
• Power Capability: 40W (free air), 50W (20 CFM forced air)
• Input Power Limit: 90W
• Input Surge Current: 12A max (132 VAC cold start), 24A max (264 VAC cold start)
• Efficiency: 70% typical
• Isolation Voltage: 3 kVAC
• Line Regulation: ±0.2% (main output, full load)
• Load Regulation: ±2.0% (full to no load)
• Temperature Coefficient: ±0.02%/°C
• Operating Temperature: 0–70°C with derating
• Operating Altitude: 10,000 feet maximum
– Key Features
• Overvoltage Protection standard (OVP at 125% ±15% Vout)
• Short-circuit protection with indefinite current limiting on single outputs
• Minimum load requirement specified
• EMC compliance to EN55022 Class A
• VDE, UL, CSA, EN60950, IEC950 certified (series approvals)
• RoHS non-compliant
– Typical Applications
Industrial control systems, commercial telecommunications equipment, and embedded systems requiring regulated 12V rails with universal input acceptance and compact mounting integration.
– Compatibility & Integration
The NFS40-7612 is obsolete but remains available for purchase and support. Part status should be verified with distributor inventory before design integration. Chassis-mount configuration requires mechanical integration into host systems with appropriate thermal management for sustained operation.
