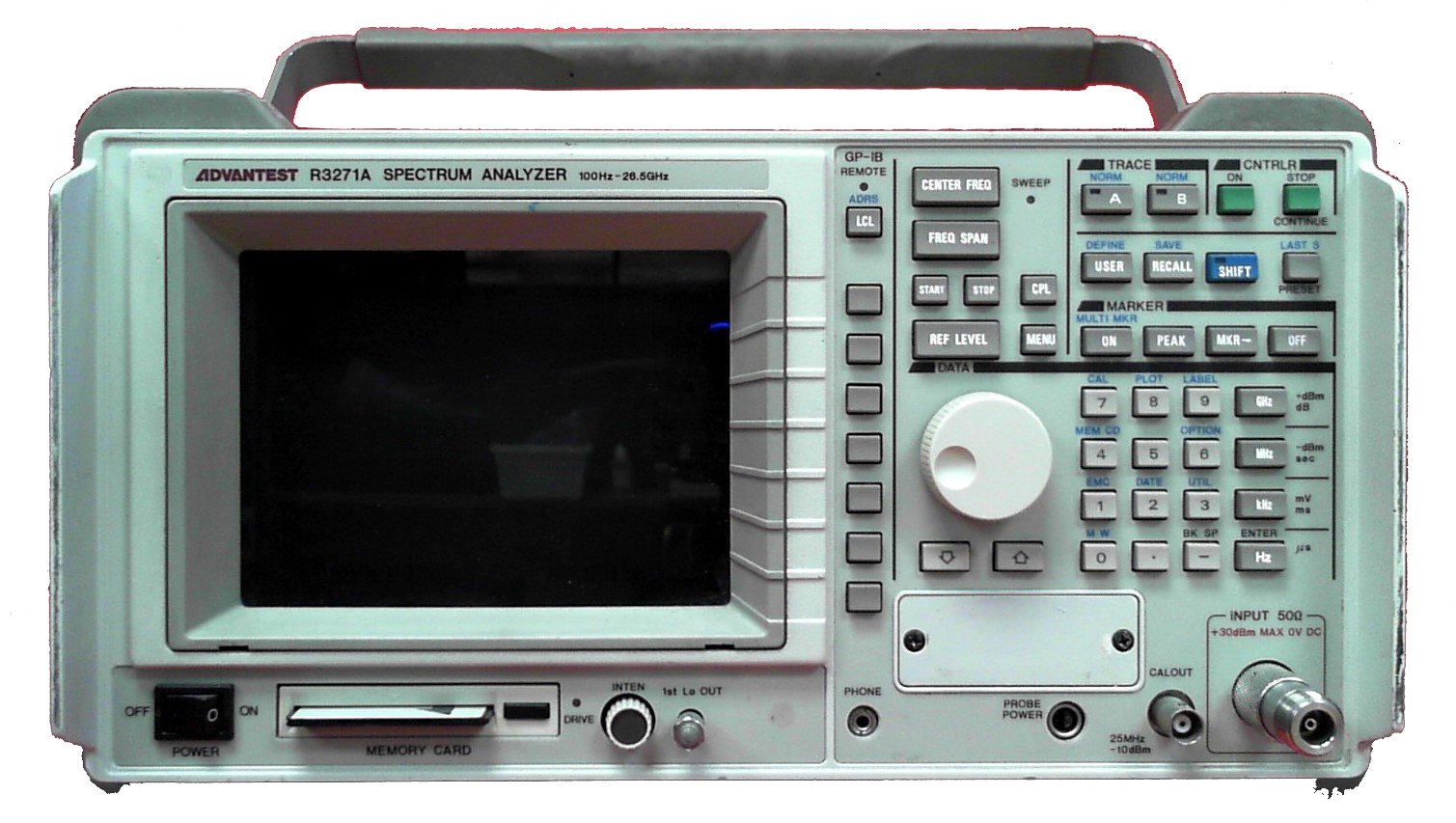

The Advantest R3271A/K is a high-performance spectrum analyzer covering 100 Hz to 26.5 GHz, with external mixer options extending measurement capability to 40 GHz and 60 GHz. It delivers -145 dBm typical displayed average noise level and 95 dB displayed dynamic range, supporting amplitude measurements from -150 dBm to +30 dBm with ±0.5 dB accuracy. The analyzer provides resolution bandwidth from 10 Hz to 3 MHz, video bandwidth to 3 MHz, and sweep times as fast as 5 µs/div in digitized mode. Gated and delayed sweep functions offer gate widths from 1 µs to 1.5 s and delay times from 200 ns to 1.5 s with 100 ns resolution.
Technical Specifications
Frequency Coverage • 100 Hz to 26.5 GHz standard; up to 40 GHz with Option 16; up to 60 GHz with Option 17.
Signal Sensitivity • Displayed average noise level (DANL): -145 dBm typical; amplitude range -150 dBm to +30 dBm.
Measurement Accuracy • Amplitude accuracy: ±0.5 dB; dynamic range: 95 dB displayed.
Bandwidth Control • Resolution bandwidth: 10 Hz to 3 MHz; video bandwidth: 1 Hz to 3 MHz (1-3-10 sequence); selectivity: <15:1 for 100 Hz to 3 MHz RBW.
Sweep Performance • Digitized sweep: 5 µs/div; zero span: 50 µs to 1000 s; span ≥200 Hz: 20 ms to 1000 s; general sweep: 1 ms to 1000 s.
Trigger Modes • Free run, line, single, video, TV-H, TV-V, external; gated and delayed sweep functions with 100 ns resolution.
– Key Features
• Built-in frequency counter with 1 Hz resolution
• Delta marker, peak marker, and up to 8-point multimarkers with list display
• Average power measurement for burst and carrier-off signals
• Occupied bandwidth and adjacent channel leakage power measurement with PDC/NADC root Nyquist filter support
• Total power measurement with RBW calibration
• Power sweep for amplifier linearity and saturation point characterization
• AM and FM spectrum demodulation
• Extensive EMC measurement functions
– Typical Applications
• Signal analysis and characterization
• Component and device testing
• Electromagnetic compatibility (EMC) measurements
• Amplifier performance evaluation
• Modulation assessment
