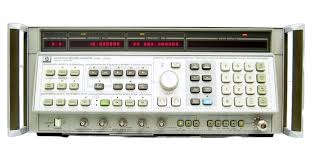

The Agilent HP 8341B is a synthesized sweeper signal generator delivering stable, precise RF and microwave signals across 10 MHz to 20 GHz. Built for receiver testing, component characterization, and automated test system integration, this instrument combines synthesized output with excellent spectral purity and frequency accuracy. Its analog sweep capability spans 45 ms to 200 sec across the full frequency range, supported by four overlapping frequency bands that minimize bandswitch points during sweep execution. The generator provides AM, FM, and pulse modulation for complex signal simulation and analysis.
Technical Specifications
Frequency Performance
• Frequency range: 10 MHz to 20 GHz
• Frequency resolution (CW mode): 1 Hz, 1 to 4 Hz, 1 to 3 Hz
• Sweep times: 45 ms to 200 sec full span
• Frequency bands: 0.01–<2.3 GHz, 2.3–<7.0 GHz, 7.0–<13.5 GHz, 13.5–20.0 GHz
Output Characteristics
• Output power range: −110 dBm to +10 dBm
• Maximum output level: +20 dBm
• Output impedance: 50 Ohms
• Output connector: Type N Female
Spectral Purity
• Single-sideband phase noise varies by frequency band and offset (30 Hz to 100 kHz offsets)
• Harmonics: <−35 dBc across all bands to 20 GHz
• Subharmonics and multiples: <−50 dBc to 20 GHz
• Non-harmonically related spurious (CW and manual sweep): <−70 dBc (Band 1), <−64 dBc (Band 2), 80 dB
• Pulse rise and fall times: ≤25 ns
– Key Features
• Four overlapping frequency bands optimize sweep performance
• Analog sweep with user-selectable time constants from 45 ms to 200 sec
• Excellent phase noise performance, particularly in the 7.0–13.5 GHz band (−101 dBc/Hz at 1 kHz and 10 kHz offsets)
• Multiple modulation options for receiver and component testing
• Fast pulse transitions support high-speed digital and RF circuit validation
– Typical Applications
• Receiver sensitivity and selectivity testing
• Filter and amplifier characterization
• Automated test system signal sourcing
• Component performance validation across microwave bands
– Compatibility & Integration
50 Ohm impedance matching and Type N connectors enable direct integration into standard RF and microwave test benches.
