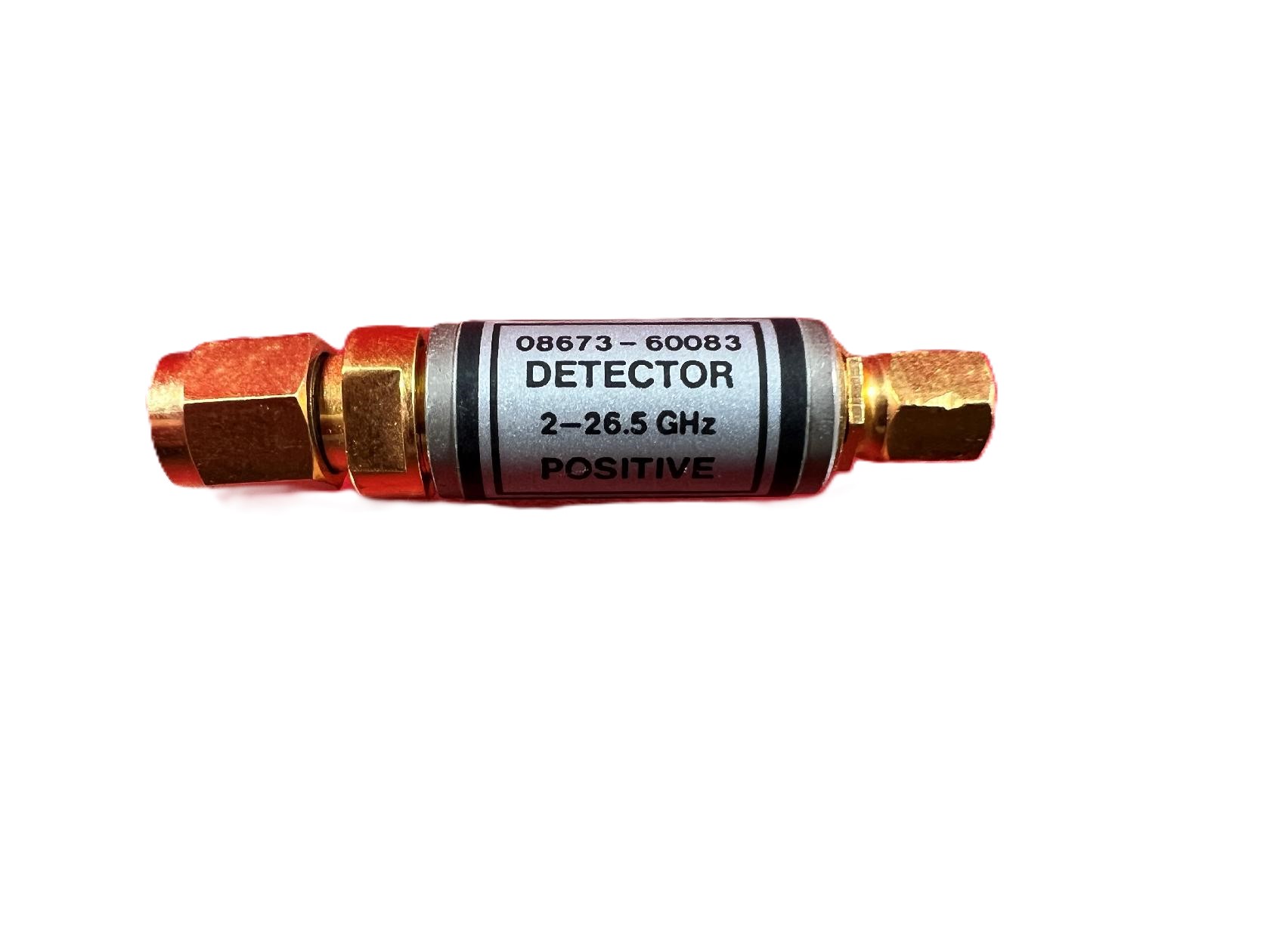

The Agilent/Keysight 08673-60083 is a coaxial RF microwave detector engineered for signal detection across the 2 GHz to 26.5 GHz frequency band. This positive-polarity detector integrates directly into Keysight 8673 Synthesized Signal Generators, providing reliable signal measurement capability within systems requiring precise microwave signal generation and monitoring. The detector operates at a maximum input power of 200 mW and features a 3.5 mm male to SMC female connector interface.
Technical Specifications
• Frequency Range: 2 GHz to 26.5 GHz
• Polarity: Positive
• Maximum Input Power: 200 mW
• Connector Type: 3.5 mm (Male) to SMC (Female)
• Dimensions: 9 × 6 × 1 inches
• Weight: 1 lbs
• Model Variants: 08673-60083 / 33330CA
– Key Features
• Wide frequency coverage from 2 GHz to 26.5 GHz supports diverse RF/microwave measurement requirements
• Positive-polarity detection for standard signal monitoring applications
• Compact form factor at 9 × 6 × 1 inches enables integration into existing test benches
• High input power rating of 200 mW accommodates moderate-to-high signal levels
• 3.5 mm to SMC connector configuration provides standard RF interconnection
– Typical Applications
• Signal detection and measurement within Keysight 8673 synthesized signal generator systems
• Microwave signal verification across 2–26.5 GHz operational bands
• RF power monitoring in test and measurement configurations
• Integration into calibrated signal generation and measurement chains
– Compatibility & Integration
Designed specifically for the Keysight 8673 Synthesized Signal Generator platform. The 8673 generators deliver calibrated and leveled output power, AM/FM/pulse modulation, digital sweep capability, and programmable control—making this detector an ideal measurement partner for complete signal generation and verification systems.
