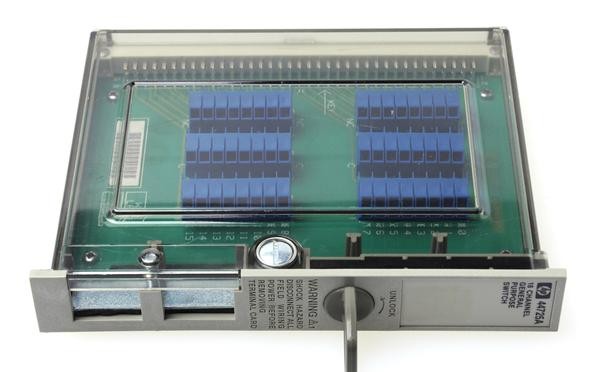

The Agilent/Keysight 44725A is a 16-channel general-purpose switch module engineered for integration into the Agilent/Keysight 3852A Data Acquisition and Control Unit. This plug-in module enables direct switching of voltage, current, and power signals across multiple channels, supporting precision measurement and control workflows in test, monitoring, and validation environments.
Technical Specifications
• 16-channel switching architecture
• Direct switching of voltage, current, and power
• Plug-in module form factor
– Key Features
• General-purpose switching suitable for mixed-signal applications
• Channel density optimized for multi-point data routing
• Direct signal path switching without intermediary conditioning
– Typical Applications
• Precision measurement systems requiring multi-channel signal routing
• Automated test environments with voltage and current switching requirements
• Control applications demanding simultaneous power and signal switching
• Data acquisition systems requiring flexible channel configuration
– Compatibility & Integration
The 44725A integrates directly into the 3852A mainframe as a plug-in module. It functions as a component within the broader 3852A data acquisition system architecture, enabling expanded switching capacity and multi-channel signal management within a unified platform.
