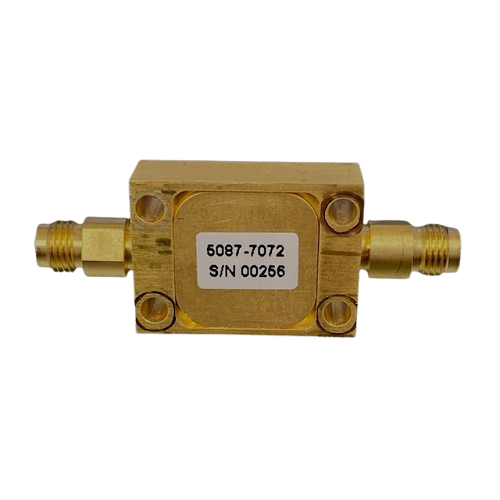

The Agilent/Keysight 5087-7072 is a buffer amplifier module designed for signal conditioning in precision test and measurement systems. It amplifies, limits, and filters RF/IF signals—specifically converting 10 MHz IF input into 10 MHz square wave output for downstream processing and frequency division applications. The module integrates into Vector Network Analyzer platforms and related instruments where phase-lock and signal distribution functions are required.
Technical Specifications
• Product Type: Buffer Amplifier
• Connector Type: 2.4 mm (F-F)
• Input Signal: 10 MHz IF
• Output Signal: 10 MHz square wave
• Dimensions: Approximately 6 × 3 × 2 inches
• Weight: Approximately 1 lb
• Power Supply (Parent System): 115 or 230 Vac ±10%, 48–440 Hz, maximum 20 VA; external 22–30 Vdc input, maximum 600 mA
– Key Features
• Precision signal conditioning with amplitude limiting and filtering
• Integrated into R-channel buffer amplifier assemblies
• Supports signal division down to 1 MHz
• MIL-T-21200 Class 1 shock resistance (30G)
• MIL-STD-167 vibration resistance
• Environmental rating: 95% humidity at 40°C; rated to 30,000 ft altitude
– Typical Applications
• Signal conditioning in phase-lock assemblies
• Frequency division and distribution networks
• IF signal processing in network analysis instruments
• Clock and timing signal generation
– Compatibility & Integration
Primary integration platform: Agilent/Keysight 8720D, 8722ES, and 8722D series Vector Network Analyzers. Module functions as internal component within larger instrument assemblies and distribution amplifier systems.
