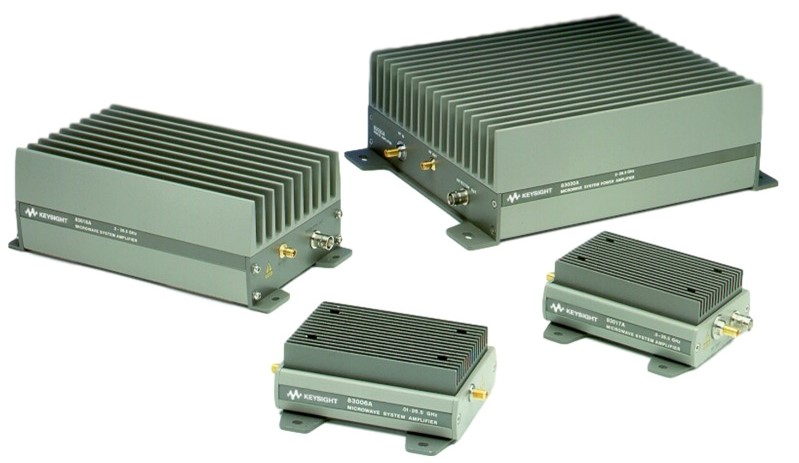

The Agilent/Keysight 83006A is a broadband RF amplifier module engineered for integration into RF and microwave Automated Test Equipment (ATE) systems. Operating from 10 MHz to 26.5 GHz, it delivers a minimum 20 dB small signal gain with output power ranging from +15 dBm to +20 dBm depending on frequency band. The amplifier recovers signal losses, boosts power levels, and simplifies system architecture by potentially replacing multiple narrow-bandwidth amplifiers with a single unit, eliminating the need for crossover networks or multiple bias supplies.
Technical Specifications
Frequency Range: 10 MHz to 26.5 GHz
Gain: 20 dB minimum (small signal)
Output Power:
• +18 dBm (0.01–10 GHz)
• +20 dBm (0.5–20 GHz)
• +16 dBm (10–20 GHz)
• +15 dBm (20–26.5 GHz)
• P1dB: >13 dBm to 20 GHz
• Survival Input Power: +23 dBm maximum
Noise Figure:
• <13 dB (0.01–0.1 GHz)
• <8 dB (0.1–18 GHz)
• <8 dB (0.5–20 GHz)
• <13 dB (20–26.5 GHz)
Gain Flatness: ±5 dB (0.01–5 GHz); ±3 dB (5–26.5 GHz)
Input/Output Impedance: 50 Ω; Input SWR: 2.6:1; Output SWR: 2.8:1 (0.01–18 GHz)
Connectors: 3.5 mm (female)
Third Order Intercept: 30 dBm (2 GHz); 36 dBm (2–20 GHz); 31 dBm (20–26.5 GHz); 20 dBm (26.5 GHz)
Harmonics: –25 dBc (0.01–11 GHz)
Reverse Isolation: –65 dB
Power Dissipation: 6 W
Bias: +12 V @ 450 mA, –12 V @ 50 mA
– Key Features
• Compact form factor with integral mounting bracket and low-profile heat sink
• Ultrabroad bandwidth simplifies multi-stage system design
• Consistent gain and noise figure across 10 MHz to 26.5 GHz range
• High reverse isolation minimizes source loading effects
– Typical Applications
• Signal loss recovery in RF/microwave ATE systems
• Power boost for driving high input impedance devices (TWTs, power amplifiers, optical modulators)
• Device characterization through compression testing
• Spectrum analyzer sensitivity and dynamic range enhancement
• Noise figure measurement system optimization
– Compatibility & Integration
Compatible with Keysight 87421A (25 W) and 87422A (70 W) power supplies. Directional detector coupling uses 83036C (0.01–26.5 GHz) or 87300C for closed-loop leveling control.
