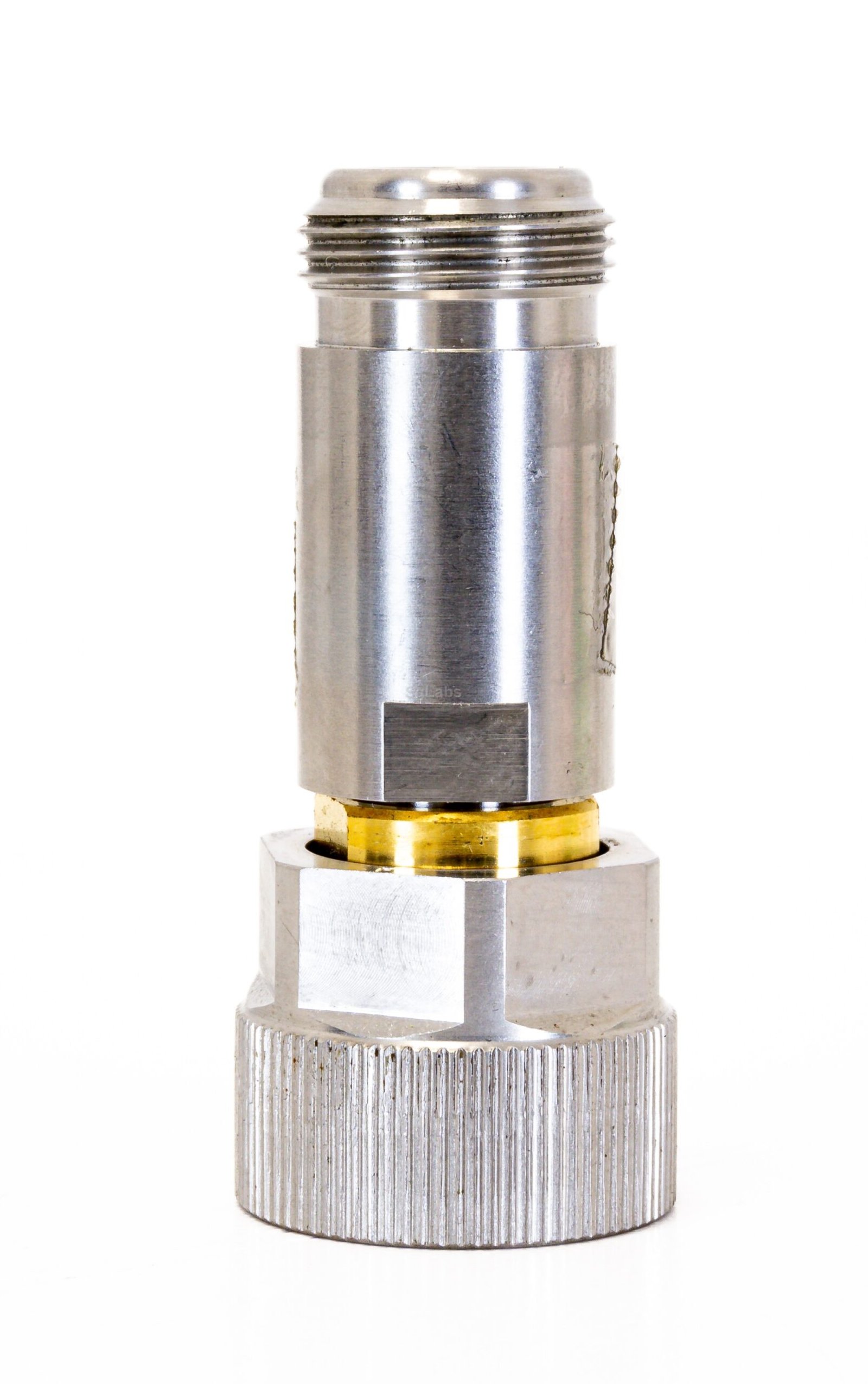

The Agilent/Keysight 85054-60001 is a precision Type-N calibration kit for full two-port network analyzer characterization across DC to 18 GHz. It delivers the calibration standards and accessories required to establish accurate S-parameter measurements and correct systematic errors in RF and microwave test systems.
Technical Specifications
Electrical & Physical
• Connector Type: Type-N (50 Ohm)
• Frequency Range: DC to 18 GHz
• Impedance: 50 Ohms
Calibration Standards
• Opens: Precision offset opens (male and female) with low-dielectric constant plastic support for minimal compensation values and repeatable connections
• Shorts: Precision offset shorts (male and female) featuring one-piece inner conductor construction for maximum repeatability
• Lowband Loads: Metrology-grade 50 Ohm terminations optimized to 2 GHz, with distributed resistive element on sapphire substrate for stability
• Sliding Loads: Precision-machined design for 3 GHz to 18 GHz operation with preset inner conductor depth control and centering bead alignment
• Broadband Loads: Included in kit configuration for extended calibration capability
– Key Features
The kit includes Type-N to 7mm adapters (two male, two female), gender-changing Type-N adapters, and a 3/4 inch torque wrench rated 135 N-cm (12 in-lb) for consistent Type-N connector engagement. Spanner wrench, connector gages, and centering beads support assembly and alignment verification. ESD protection comprises grounding wrist strap, grounding cord, and conductive table mat. Protective storage case included.
– Typical Applications
Full two-port calibration of network analyzers; S-parameter characterization; RF and microwave measurement accuracy validation; systematic error correction across broadband frequency spans.
– Compatibility & Integration
Designed for Agilent and Keysight network analyzers including ENA Series (e.g., E5061A) and PNA Series platforms.
