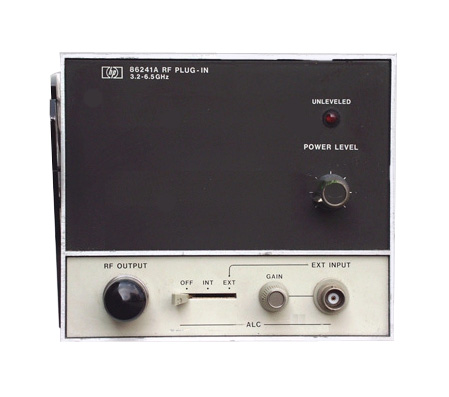

The Agilent/Keysight 86241A is an RF plug-in module engineered for integration into Agilent/Keysight sweep oscillator mainframe systems. Designed to support RF testing and signal characterization across a broad spectrum, this module functions as a frequency-generation component within compatible mainframe architectures.
Technical Specifications
• Form Factor: Plug-in module for sweep oscillator mainframe installation
• System Architecture: Compatible with Agilent/Keysight sweep oscillator mainframe units
– Key Features
The 86241A operates within sweep oscillator platforms, providing signal generation capabilities for RF characterization work. As a modular component, it integrates directly into designated mainframe slots, eliminating the need for standalone equipment.
The module supports sweep functionalities inherent to its parent oscillator system, including digital sweep operations. Control and automation are managed through standard interfaces available on compatible mainframe systems.
– Typical Applications
• RF testing and signal characterization
• Frequency sweep measurements
• Integration within multi-module test systems
– Compatibility & Integration
The 86241A is a dedicated plug-in module and requires a compatible Agilent/Keysight sweep oscillator mainframe for operation. It does not function as a standalone instrument. Installation is accomplished by inserting the module into the appropriate slot within the mainframe chassis, after which it operates under the control systems and interfaces provided by the parent equipment.
Mainframe systems featuring this module type typically offer LAN, GPIB, and RS-232 interfaces for remote control and system integration.
