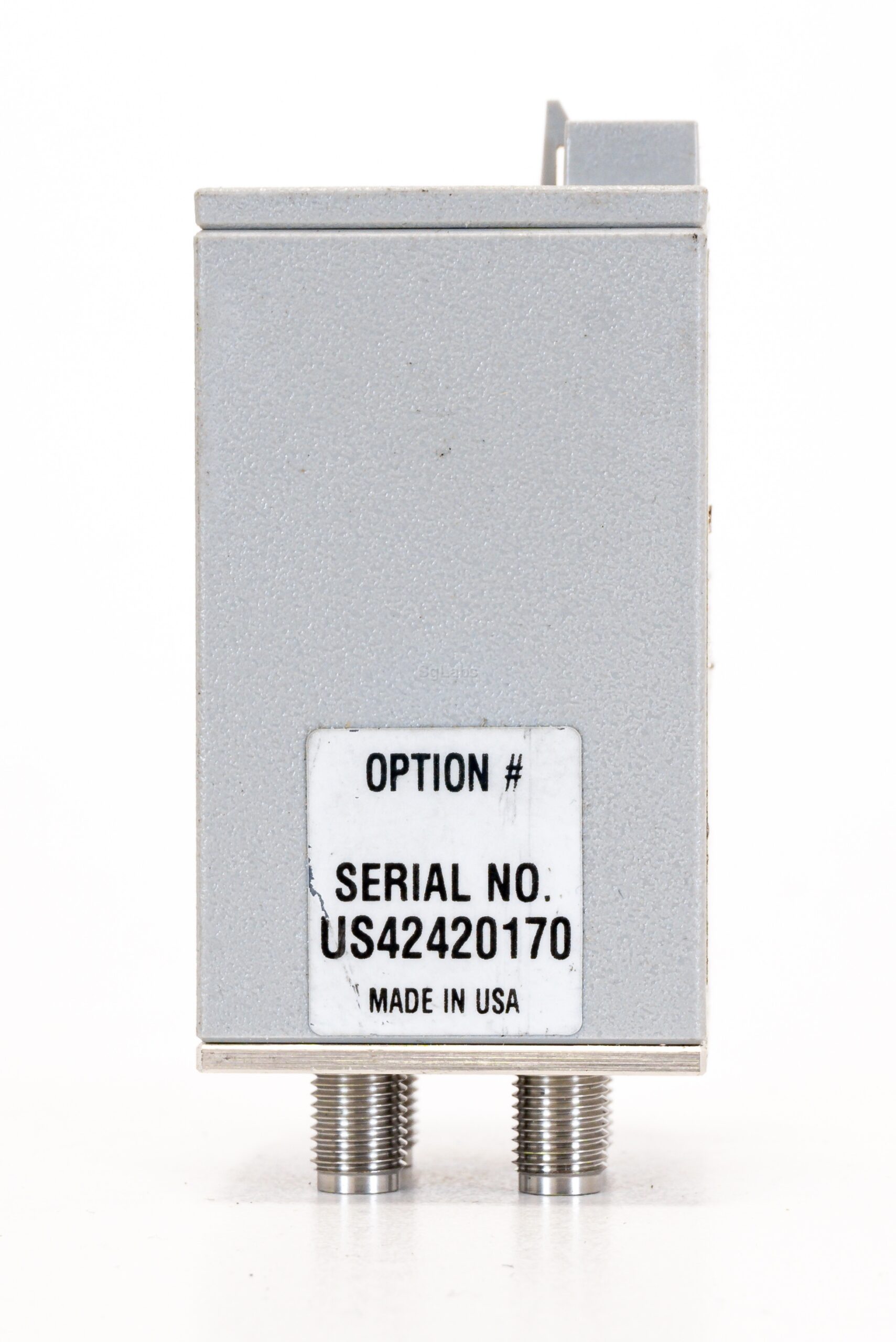

The Agilent/Keysight 87222D is a 4-port coaxial transfer switch engineered for RF and microwave signal routing from DC to 40 GHz. This electromechanical switch delivers insertion loss of 0.2 dB + 0.025 × frequency (GHz) with isolation exceeding 120 dB at 26.5 GHz and better than 60 dB at 40 GHz. Switching occurs in less than 20 ms with break-before-make operation, and the design supports over 5 million switching cycles for dependable performance in production and automated test environments.
Technical Specifications
• Frequency Range: DC to 40 GHz
• Insertion Loss: 0.2 dB + 0.025 × frequency (GHz); repeatability 120 dB at 26.5 GHz; > 60 dB at 40 GHz
• SWR: 1.3 maximum (DC–12.4 GHz); 1.4 maximum (12.4–25 GHz); 1.7 maximum (25–40 GHz)
• Switching Time: 5 million cycles
• Connectors: 2.92 mm
• Control Voltage: +20 VDC to +32 VDC
• Control Logic: TTL/5V CMOS compatible; magnetic latching; single or dual-line TTL
• Operation Mode: Break-before-make
• Weight: Approximately 100 gm (0.23 lb)
– Key Features
• Opto-electronic indicators and interrupts for real-time monitoring
• Designed for standard industry footprints including 1.25-inch square flange configuration
• 10-pin ribbon drive cable interface; optional solder terminal connections available
• Compact body approximately 2.75 inches in length
– Typical Applications
• Signal routing and conditioning in multitiered switching systems
• Drop-out switching configurations
• Dual input/output switching and signal reversal
• Integration into large RF and microwave test matrices
– Compatibility & Integration
The 87222D integrates with Keysight 11713B/C Attenuator/Switch Driver for seamless system control. Option 100 adds solder terminals alongside ribbon cable connectivity. Option 201 provides a mounting bracket assembly; bracket model 87222-00003 is available separately. Commercial calibration test data with certificate is available under Option UK61.
