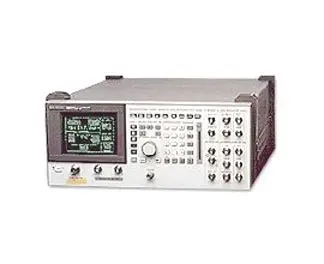

The Agilent/Keysight 8922M is a GSM Radio Test Set purpose-built for high-volume manufacturing and device validation. This single-unit instrument integrates RF generation, RF analysis, power measurement, audio analysis, and GSM base station emulation to streamline production testing workflows. The 8922M delivers one-button call setup, fast burst BER measurements, and repeatable performance across GSM Phase II compliance testing, including Enhanced Full-Rate Speech and High-Speed Circuit Switched Data (HSCSD).
Technical Specifications
RF Generator
• Frequency range: 10 MHz to 1 GHz with 1 Hz resolution
• Output level range: -14 dBm to -127 dBm; -6 dBm to +41 dBm
• Output level resolution: 0.1 dB
• Modulation: 0.3 GMSK, pulse, 30 dB pulse, AM
• FM demodulation offset: ≤50 kHz; offset resolution 500 Hz
RF Analyzer
• Frequency range: 10 MHz to 1 GHz (1 Hz resolution)
• Auxiliary RF input level range: -36 dBm to +20 dBm
• RF In/Out SWR: <1.5:1
Power Measurement
• Frequency range: 90 MHz to 1 GHz
• Power measurement range: -5 dBm to +41 dBm
Audio Analyzer
• Frequency range: 20 Hz to 400 kHz
Oscilloscope
• Frequency range: 2 Hz to 50 kHz
Frequency Counter
• Frequency range: 10 MHz to 1 GHz
– Key Features
• Base station emulation with configurable broadcast and control channels (BCCH + CCCH; BCCH + CCCH + SDCCH/4)
• Bit/Frame error rate measurements: Class Ia, Ib, and Class II (raw and residual)
• E-GSM and dual-band assignment support
• Independent frequency hopping with two user-definable MA tables
• MS power output control (levels 0–15) with RF analyzer auto-adjust
• Full-rate speech encoding/decoding with user-selectable echo delay (0–5 seconds)
• SACCH measurement results: RXLEV, RXQUAL, timing advance
• Traffic channel support: TCH (FS/EFS)–HSCSD
• Control channel handling: SDCCH, FACCH, SACCH with flexible burst/ARFCN/timeslot coordination
– Typical Applications
• GSM device manufacturing test and troubleshooting
• Mobile handset validation across Phase II specifications
• Radio frequency performance characterization
• Bit error rate and speech quality assessment
– Compatibility & Integration
Extended frequency coverage available when used with Agilent 83220A/E.
