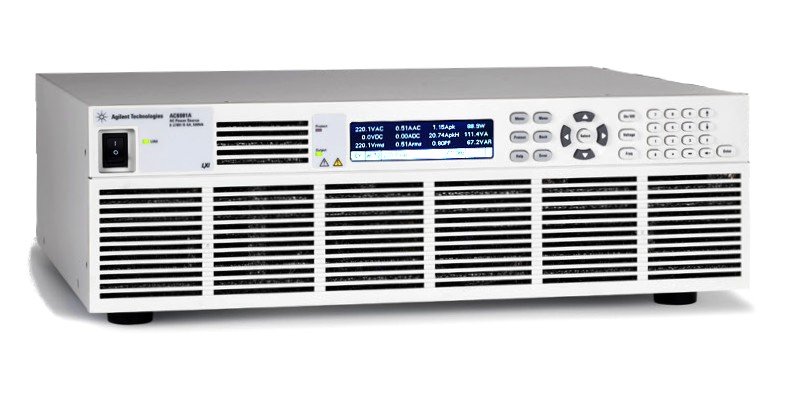

The Agilent/Keysight AC6801A is a 500 VA AC power source engineered for device testing, system validation, and bench applications requiring precise AC and DC output control. The unit delivers dual-range voltage outputs with independent AC, DC, and AC+DC coupled measurements, making it suitable for characterization of power supplies, motor drives, and equipment with mixed-mode power requirements.
Technical Specifications
AC Output Mode
• Voltage: 1–135 Vrms (low range) / 2–270 Vrms (high range)
• Current: 5 A max (low range) / 2.5 A max (high range)
• Frequency range: 40–500 Hz with ±0.02% accuracy
• Voltage setting accuracy: 0.3% full scale (low) / 0.25% full scale (high)
• Load power factor: 0 to 1 (leading or lagging)
DC Output Mode
• Voltage: 135 V / 270 V (low/high range)
• Current: 4 A max (low range) / 2 A max (high range)
• Power capacity: 400 W
Input Requirements
• Mains voltage: 100–120 Vrms / 200–240 Vrms, auto-detected (90–132 Vrms / 180–264 Vrms operating range)
• Mains frequency: 47–63 Hz (50/60 Hz nominal)
• Input apparent power: ≤800 VA
• Input current: ≤8 A @ 100 V / ≤4 A @ 200 V
• Typical power factor: 0.9
Environmental
• Operating temperature: 0–40 °C
• Storage temperature: −10–60 °C
– Key Features
• Dual AC/DC output modes with independent measurement channels
• Two voltage ranges optimize resolution and dynamic headroom
• Wide frequency programmability from 40–500 Hz enables power quality and motor testing
• LAN/LXI Core and USB connectivity for remote operation and data logging
• Optional GPIB interface board (AC68GPBU) and analog interface board (AC68ALGU) expand integration options
• IEC Safety Class I equipment with mandatory protective ground connection
– Compatibility & Integration
Member of the AC6800 Series. Rack mounting supported via AC68RAC3 flange kit (compatible with AC6801A, AC6802A, AC6803A).
