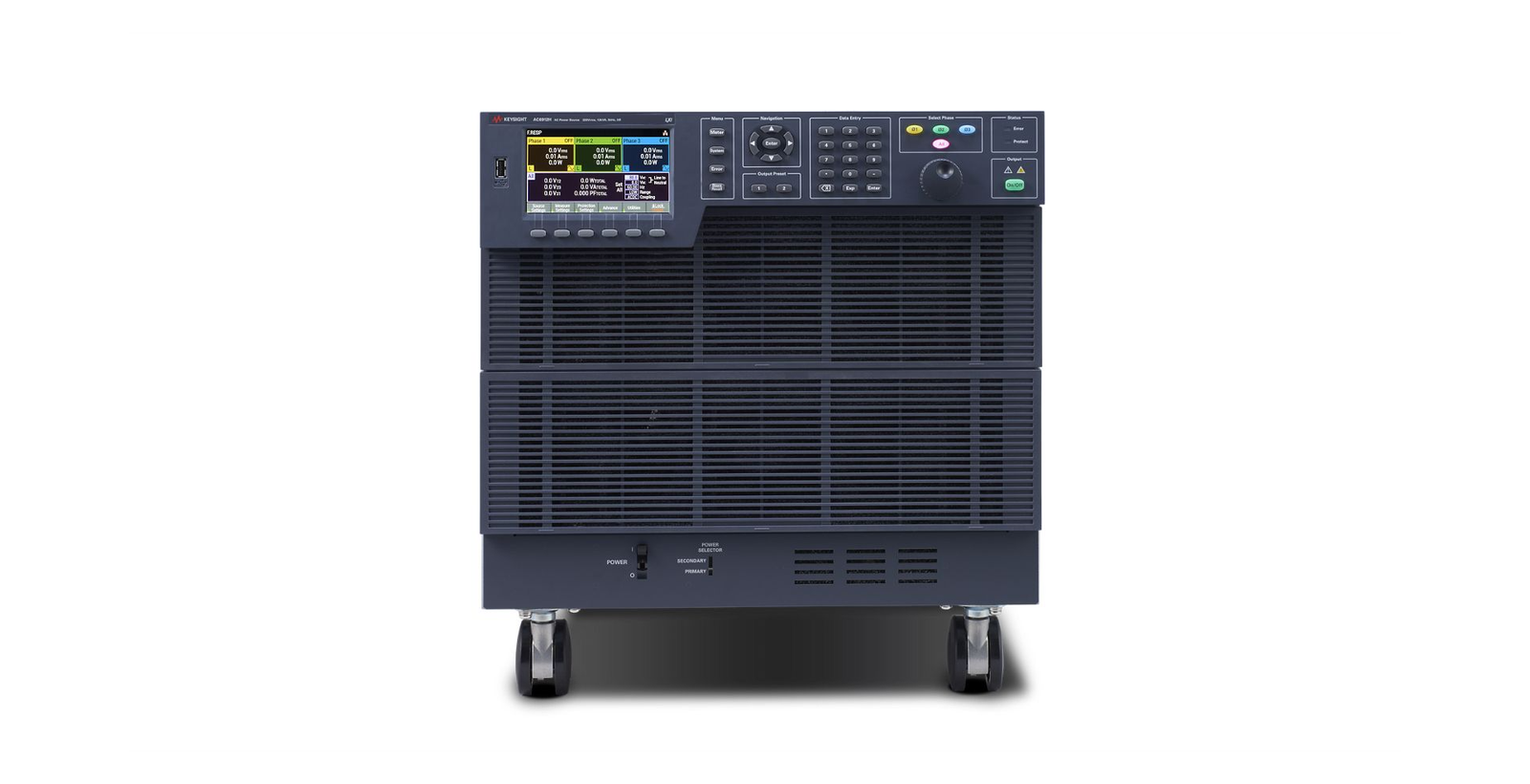

The Keysight AC6912L is a 12 kVA three-phase AC power source that merges power generation with integrated multimeter, harmonic analyzer, and power analyzer functionality. Designed for rigorous electrical system testing, it outputs up to 320 Vrms AC (452 V DC maximum) across configurable single-phase, single-phase three-wire, or three-phase four-wire topologies. The instrument operates from 1 Hz to 550 Hz, supporting AC, DC, and AC+DC modes simultaneously. It generates custom waveforms, simulates power line disturbances, and measures voltage, current, and power with ±(0.15% + 0.3 V) accuracy across the 45 Hz to 500 Hz band. Built-in harmonic analysis, output sequencing, and programmable soft start/stop and output inhibit functions enable compliance testing for avionics (RTCA DO-160, MIL-STD-704) and general component validation including relays and transformers.
Technical Specifications
• Output Power: 12 kVA
• Output Voltage (Max AC RMS): 320 Vrms
• Output Voltage (Max DC): 452 V
• Output Voltage Setting Range: 0.0–161.0 V (low), 0.0–322.0 V (high)
• Voltage Resolution: 0.1 V
• Voltage Accuracy (45 Hz–500 Hz): ±(0.15% + 0.3 V)
• Frequency Range: 1 Hz to 550 Hz
• Frequency Variation (AC Mode): ±1% (40 Hz to 5 kHz, referenced at 55 Hz)
• Max RMS Current: 120 A / 60 A (1-phase); 40 A / 20 A (1-phase 3-wire or 3-phase)
• Power Factor: 0.95
• Input Voltage: 180–235 V and 380–480 V configurations available
• Input Frequency: 50/60 Hz
• Harmonic Content: 5 Hz to 1 MHz components in DC mode
– Key Features
• Waveform generation with custom AC profiles
• Power line disturbance simulation
• Integrated harmonic analysis (Fourier decomposition to 1 MHz)
• Output sequencing for multi-step test protocols
• Programmable soft start/stop and output inhibit
• Over/under-voltage protection
• 5-inch LCD color display
– Typical Applications
• Avionics equipment validation (DO-160, MIL-STD-704)
• Power interruption simulation and recovery testing
• Harmonic and voltage fluctuation analysis
• Relay and transformer functional verification
• Electronic system stress and compliance evaluation
– Compatibility & Integration
• LAN: LXI Core
• USB: TMC and CDC (Virtual COM)
• GPIB: Optional
