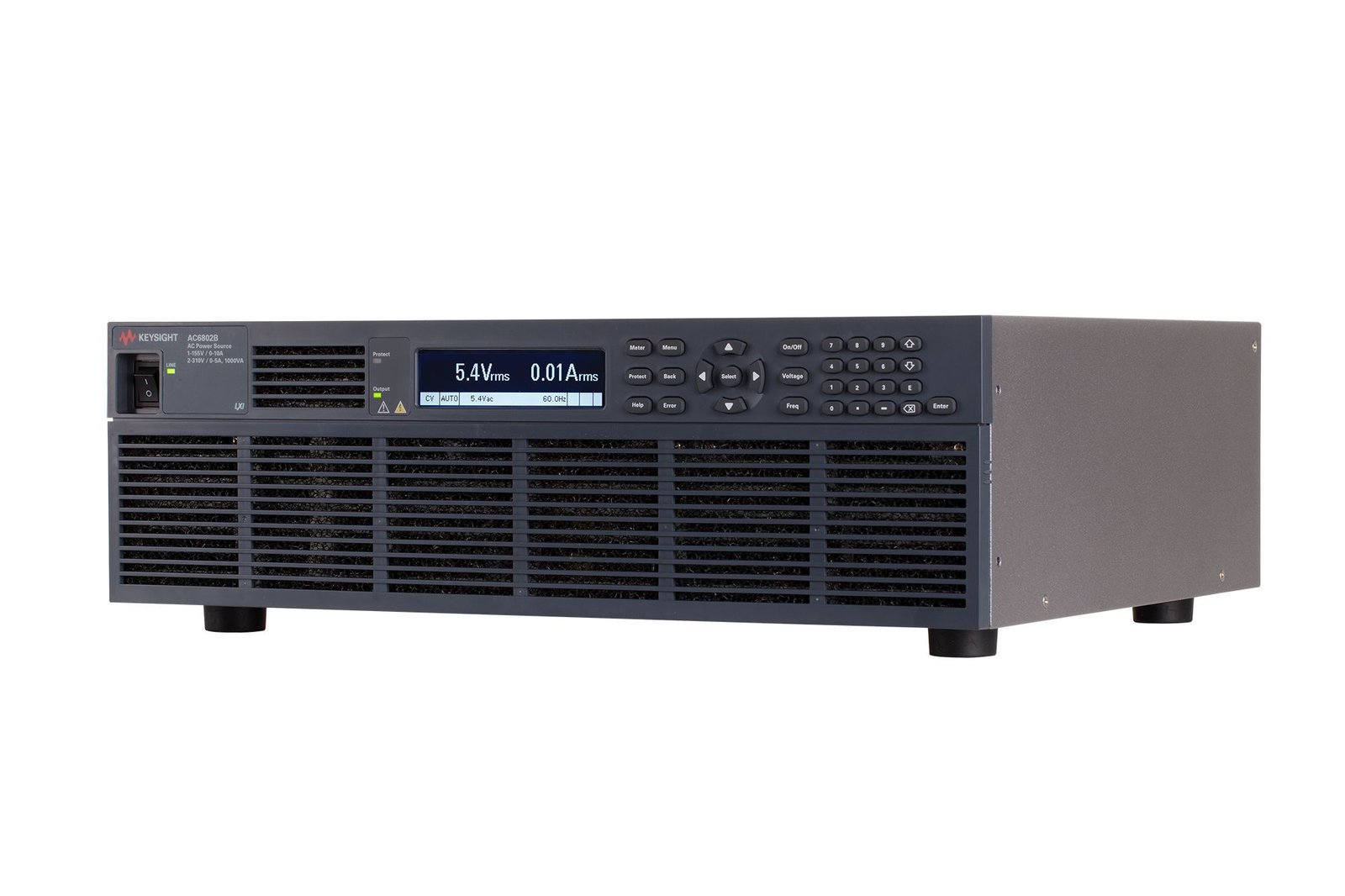

The Keysight AC6802B is a 1000 VA single-phase AC power source engineered for precision power delivery across test, validation, and research environments. It generates both AC and DC output with independent voltage and current ratings, enabling simulation of diverse power conditions and load scenarios. The instrument combines flexible frequency control, multi-range voltage selection, and integrated measurement capabilities into a compact 6.12 kg package.
Technical Specifications
AC Output
• Maximum output power: 1000 VA
• Voltage ranges: 155 Vrms (low) / 310 Vrms (high)
• Maximum RMS current: 10 A (155 V) / 5 A (310 V)
• Peak current capability: 30 A (155 V) / 15 A (310 V)
• Frequency range: 40 Hz to 500 Hz at ±0.02% accuracy
• Load power factor: 0 to 1 (leading or lagging)
• Voltage stability: 100 ppm/°C (typical)
• Output voltage response time: 150 µs (typical)
• Line regulation: ±0.15% of full scale
• Voltage setting accuracy: 0.35% of full scale
DC Output
• Maximum output power: 800 W
• Voltage ranges: 219 V (low) / 438 V (high)
• Maximum RMS current: 8 A (219 V) / 4 A (438 V)
Input Requirements
• Nominal input: 100–120 Vrms or 200–240 Vrms, 50/60 Hz, single-phase
• Input voltage range: 90–132 Vrms / 180–264 Vrms (auto-detected)
• Input frequency: 47 Hz to 63 Hz
• Power factor: 0.9 (typical)
– Key Features
• Dual AC and DC output modes with independent power ratings
• Programmable frequency generation across 40 Hz to 500 Hz
• Precision measurement suite: voltage, current, power, AC, DC, and AC+DC modes
• Remote sensing for load-end regulation
• Protective circuits: overvoltage (OVP), overcurrent (OCP), overtemperature (OTP), overpressure (OPP)
• IEC Safety Class I rated
– Typical Applications
• Power supply testing and validation
• Component and subsystem stress testing across variable frequency and voltage conditions
• AC/DC load simulation
• Power factor and harmonics characterization
– Compatibility & Integration
• USB-TMC and USB-CDC (Virtual COM) interfaces
• LAN/LXI Core connectivity
• Optional GPIB interface
• Operating temperature: 0 to 40 °C
• Compact form factor: 368 × 429 × 128 mm
