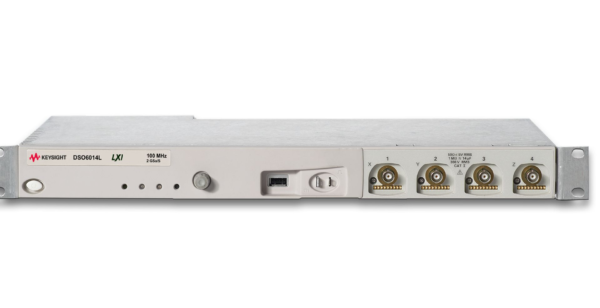

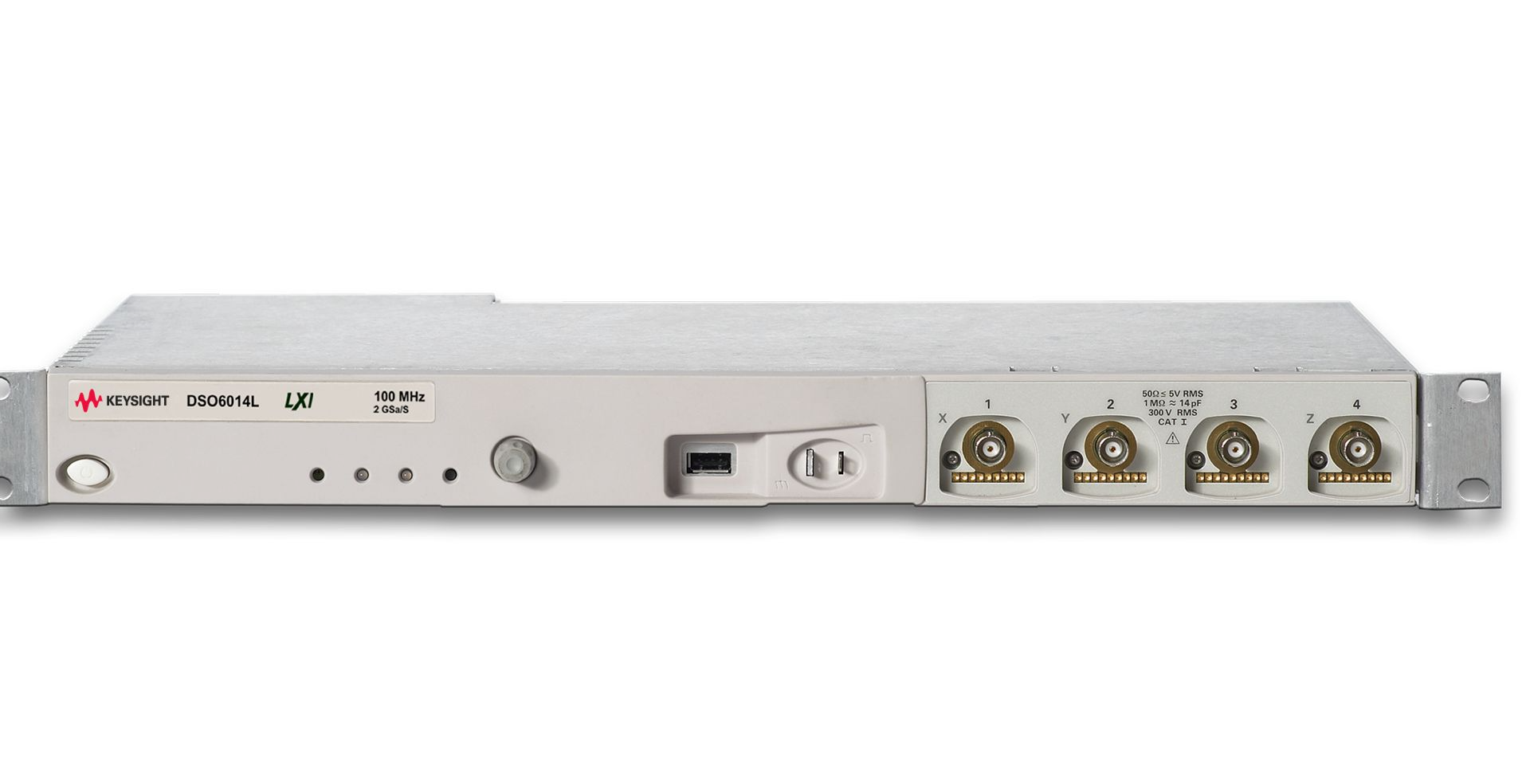

The Agilent/Keysight DSO6014L is a compact 1U-high digital storage oscilloscope purpose-built for space-constrained rack and benchtop installations. With 100 MHz bandwidth across four simultaneous analog channels, 2 GSa/s real-time sampling, and 8 Mpts memory depth, it delivers fast signal acquisition and waveform update rates to 100,000 waveforms/sec for embedded debugging and automated test applications.
Technical Specifications
Analog Channels
• 4 simultaneous acquisition channels
• DC to 100 MHz bandwidth (−3 dB)
• Selectable 20 MHz bandwidth limit
• 1 mV/div to 5 V/div full-scale range (1 MΩ input)
• Input impedance: 1 MΩ ± 1% || 11 pF
• AC/DC coupling with configurable offset (±5 V to ±75 V depending on range)
• BNC connectors; 3% full-scale or 2 mV peak-to-peak noise floor
• CAT I/II rated to 300–500 Vpk (varies by probe configuration)
Acquisition & Memory
• 2 GSa/s maximum sample rate
• 8 Mpts standard memory; 2 Mpts and 8 Mpts options available
• 8-bit vertical resolution, extending to 12 bits at slower time bases (50 µsec/div and beyond)
• Time base: 5 nsec/div to 50 sec/div
• Modes: Normal, Peak Detect (1 nsec), Averaging, High Resolution with Sin x/x interpolation
Digital Channels (MSO Option)
• 16 logic timing channels (D15–D0)
• 250 MHz maximum input frequency
• 2 GSa/s per pod; 1 GSa/s each pod (8 channels per pod)
• 4 Mpts memory depth
• TTL, CMOS, ECL, and user-definable thresholds (±8.0 V range, 10 mV resolution)
• 2 ns glitch detection; ±40 V peak CAT I maximum input
Trigger System
• Sources: analog channels 1–4, Line, EXT, and digital channels D0–D15 (MSO enabled)
• Modes: Auto, Normal, Single
– Key Features
• LXI Class C compliance with built-in web browser control
• 19-inch standard rack-mount form factor (1U height)
• Full connectivity: USB, LAN, GPIB, XGA video output
• MegaZoom III deep memory architecture
• MSO expansion to 16 digital channels for mixed-signal analysis
– Typical Applications
• Embedded system validation and debug
• Mixed-signal protocol analysis (with MSO option)
• Automated test system integration
• Production troubleshooting in space-limited environments
– Compatibility & Integration
Standard rack-mount hardware and LXI compliance enable seamless deployment in automated ATE racks. Compatible with 10073C/10074C 10:1 passive probes for extended voltage measurement range.
