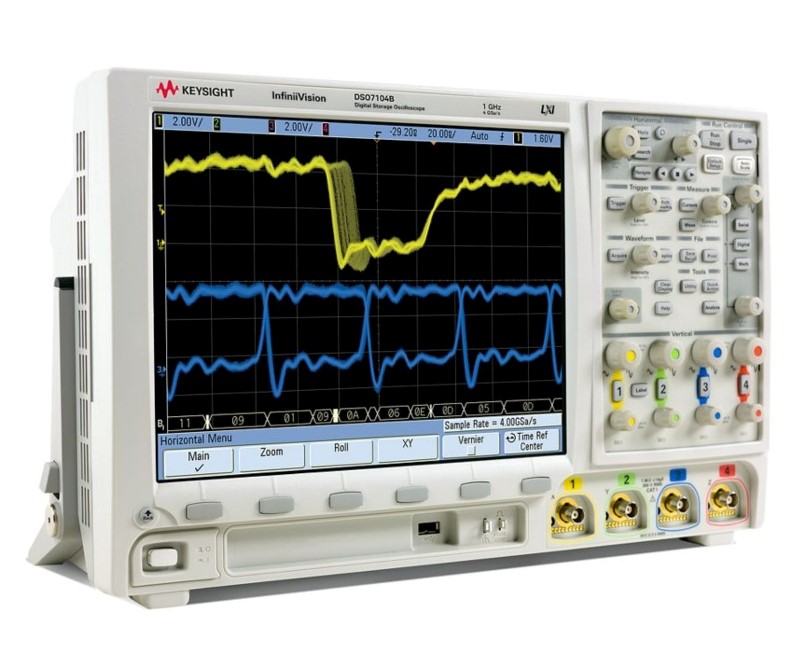

Agilent / Keysight DSO7104B Oscilloscope: 1 GHz, 4 Analog Channels

The Keysight DSO7104B is a 1 GHz, 4-channel digital storage oscilloscope built for signal analysis, debugging, and protocol validation in embedded systems and automotive environments. With a 4 GSa/s maximum sample rate and 8 Mpts of deep memory, it captures long signal sequences without sacrificing temporal resolution. The 12.1-inch XGA display with 256 intensity levels and a 100,000 waveforms/second capture rate make it effective at isolating and characterizing infrequent events and transient behavior.

Advanced triggering and decoding options include I2C, SPI, CAN, LIN, FlexRay, RS-232/UART, I2S, and MIL-STD-1553 serial protocols. Mask testing and segmented memory optimize verification workflows and data capture efficiency. Up to 23 automated measurements with statistical analysis (mean, min, max, standard deviation, count) reduce manual post-processing. The AutoProbe interface handles probe attenuation configuration and power delivery automatically.

Technical Specifications

• Bandwidth: 1 GHz
• Analog Channels: 4
• Maximum Sample Rate: 4 GSa/s
• Memory Depth: 8 Mpts
• Waveform Capture Rate: Up to 100,000 waveforms/sec
• Rise Time: 350 ps
• Input Impedance: 1 MΩ
• Vertical Resolution: Up to 12 bits (High Resolution mode)
• Display: 12.1-inch XGA LCD, 256 intensity levels
• Dimensions: 6.5 inches deep
• Weight: 13 pounds

– Key Features

• Waveform math: FFT, subtract, multiply, integrate, square root, differentiate
• Serial protocol decode and triggering: I2C, SPI, CAN, LIN, FlexRay, RS-232/UART, I2S, MIL-STD-1553
• Mask limit testing for pass/fail validation
• Segmented memory for optimized capture in gapped data streams
• AutoProbe interface for active probe configuration
• USB and LAN connectivity for data transfer and printing
• Optional upgrade to 16-channel mixed-signal oscilloscope (MSO) via N2737A kit
• Keysight I/O libraries suite 15.0 included
• MATLAB software support for custom analysis routines

– Typical Applications

• Automotive electronics validation (CAN, LIN, FlexRay)
• Embedded system debugging (I2C, SPI, UART)
• Avionics and military signal analysis (MIL-STD-1553)
• Audio and consumer electronics (I2S decoding)
• Protocol compliance and conformance testing

– Compatibility & Integration

The instrument integrates with Keysight software suites via USB and LAN. Users can upgrade the DSO7104B to mixed-signal capability without replacing the core unit. Documentation includes user’s guide, service guide, and programmer’s manual on CD.
