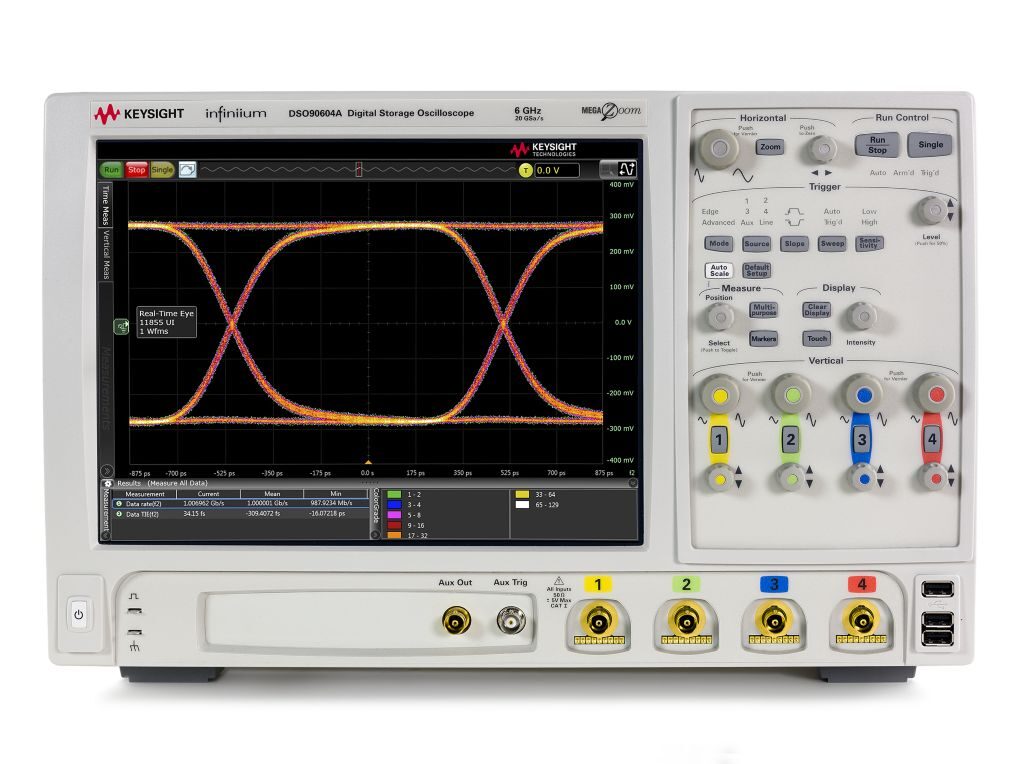

The Keysight DSO90604A Infiniium is a 6 GHz high-performance oscilloscope engineered for precision signal analysis in research, development, and test environments. This four-channel instrument delivers 20 GSa/s sampling in 4-channel mode and 40 GSa/s in 2-channel mode, with configurable memory depth up to 1 Gpts per channel. The DSO90604A captures complex high-frequency signals with 540 ps rise time and 8-bit vertical resolution, expandable to greater than 12 bits through averaging.
Technical Specifications
Acquisition and Bandwidth
• Analog bandwidth: 6 GHz (−3 dB), upgradeable to 13 GHz
• Maximum sample rate: 40 GSa/s (2-channel mode), 20 GSa/s (4-channel mode)
• Memory depth: 10 Mpts standard (4-channel); up to 1 Gpts per channel with options
• Vertical resolution: 8 bits; >12 bits with averaging
• Rise time: 540 ps (10%–90% at 50 Ω)
Input Specifications
• Input impedance: 50 Ω ±2.5% or 1 MΩ ±1% (11 pF typical)
• Input sensitivity: 1 mV/div to 1 V/div (50 Ω); 1 mV/div to 5 V/div (1 MΩ)
• Input coupling: AC (3.5 Hz) or DC
• Maximum input voltage: 5 Vrms (50 Ω); 150 Vrms dc (1 MΩ)
• Noise floor: 0.98 mVrms at 50 mV/div
• Hardware bandwidth limit: 20 MHz (1 MΩ input only)
Timebase and Triggering
• Timebase range: 500 fs/div to 1000 s/div
• Trigger types: Edge, Glitch, Runt, Pattern, Setup/Hold, Pulse Width, Timeout, Window, Qualified, Serial
• Trigger modes: Auto, Normal, Single
Display and I/O
• 12.1-inch XGA (1024 × 768) color touch screen or 15-inch color TFT LCD
• Interfaces: 10/100/1000 BaseT Ethernet, four USB 2.0 host ports, one USB 2.0 device port, RS-232, parallel port, optional GPIB
• Power dissipation: 375 W
– Key Features
• Four analog channels with selectable 50 Ω or 1 MΩ input impedance
• Channel-to-channel isolation: 50 dB (DC–50 MHz), 40 dB (>50 MHz–1 GHz), 25 dB (>1 GHz–4 GHz)
• Minimum input voltage swing: 500 mV peak-to-peak
• Advanced triggering with glitch, runt, pattern, and qualified modes
• Upgradeable bandwidth and memory options for future application scaling
– Typical Applications
High-frequency signal characterization, serial protocol analysis, pulse and transient measurement, electromagnetic compatibility testing, and circuit validation in RF and microwave design environments.
– Compatibility & Integration
Gigabit Ethernet connectivity enables remote instrument control and data transfer. Multiple USB and legacy serial interfaces support integration with automated test systems and legacy hardware configurations.
