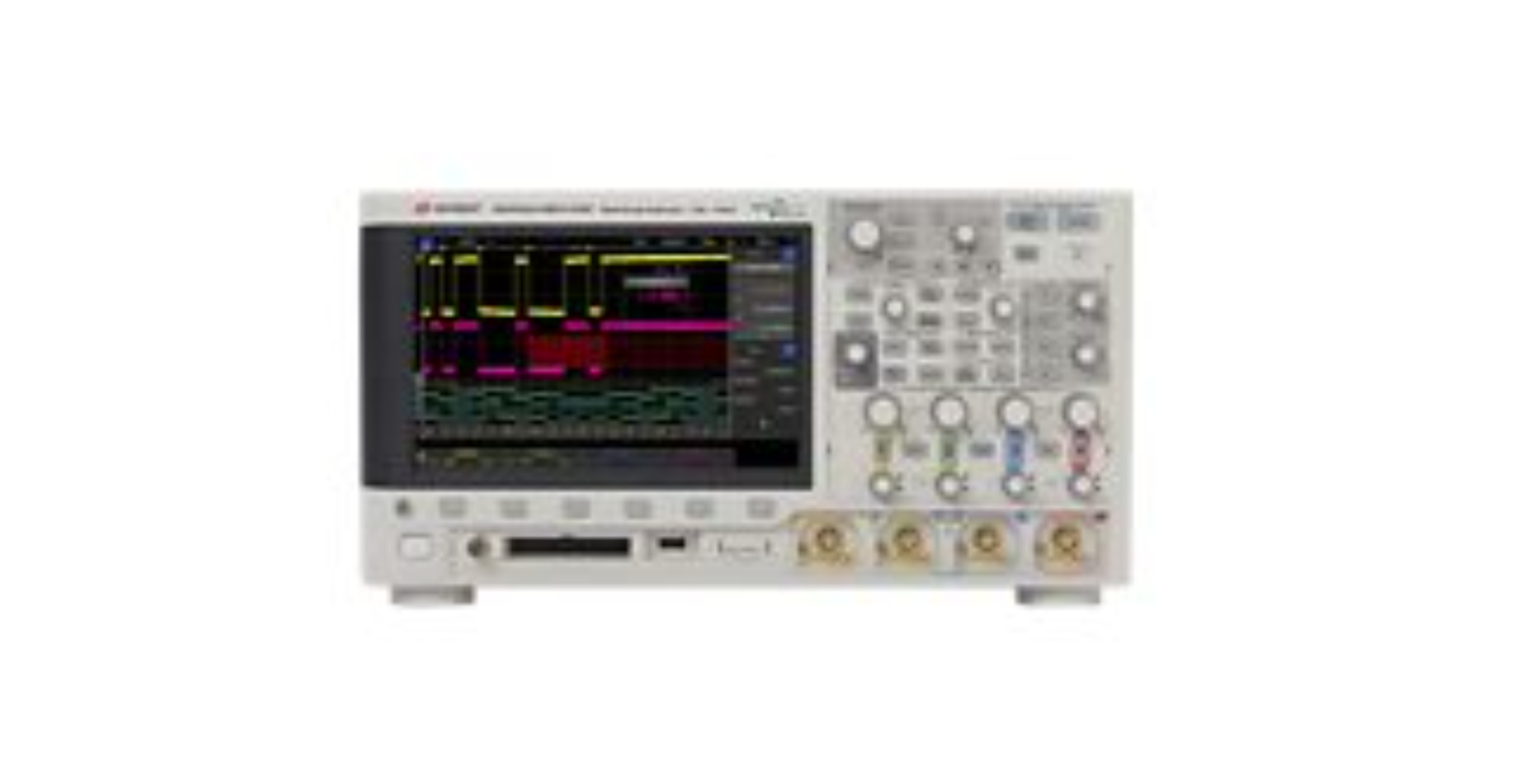

The Keysight DSOX3104T is a 1 GHz, 4-channel digital oscilloscope built for signal analysis and rapid troubleshooting in design and test environments. It delivers an exceptional waveform update rate exceeding 1,000,000 waveforms per second, enabling capture of transient events and discovery of intermittent faults. The 8.5-inch capacitive touch screen with gesture support provides tablet-like operation, while Zone touch triggering enables rapid signal isolation. Hardware-based dual-zone triggering combined with segmented memory management supports both burst analysis and long-duration signal capture.
Technical Specifications
• Bandwidth: 1 GHz (upgradeable from 100 MHz)
• Analog Channels: 4
• Digital Channels: 16 (with optional MSO upgrade)
• Maximum Sample Rate: 5 GSa/s
• Memory Depth: 4 Mpts (2 Mpts per channel at full channel utilization)
• Waveform Update Rate: >1,000,000 wfms/s (maintained across digital channels, measurements, and serial decoding)
• Display: 8.5-inch capacitive touch screen with gesture support
• Vertical Resolution: 8-bit, 12-bit
• Input Impedance: 1 MΩ or 50 Ω
– Key Features
• Zone touch triggering with hardware-based two-zone support for signal isolation
• Segmented memory for flexible management of burst and continuous signals
• Advanced math functions and 8-digit frequency counter
• 3-digit digital voltmeter integrated into instrument set
• Drag-and-drop waveform and cursor control; alphanumeric annotation capability
• Front panel buttons, knobs, and Keysight Insight pull-down menu
• USB mouse and keyboard support
• Gated FFT with peak search for time/frequency domain analysis
• BenchVue Software with Oscilloscope app for multi-measurement control and display
• Infiniium Offline scope data analysis tool
– Integrated Instruments (7-in-1)
• Oscilloscope
• Frequency Counter
• Digital Voltmeter (DVM)
• Protocol Analyzer (optional)
• Arbitrary Waveform Generator—20 MHz (optional)
• Logic Analyzer—16 channels (optional)
– Compatibility & Integration
Optional upgrades include Mixed Signal Oscilloscope (MSO) capability with 16 digital channels, serial protocol analysis, and mask limit testing. BenchVue software enables simultaneous control and display across multiple instruments and measurements.
