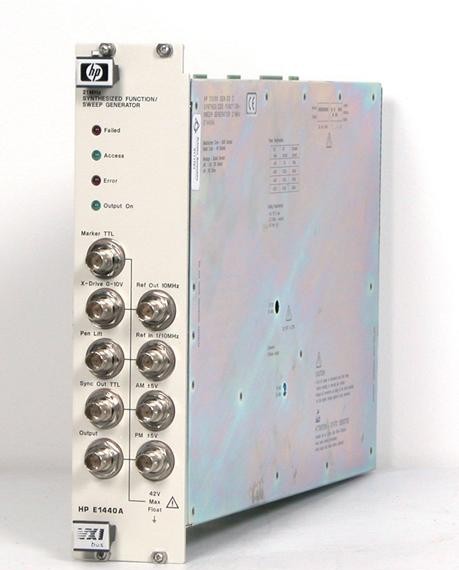

The Agilent/Keysight E1440A is a C-size, two-slot VXI synthesized function and sweep generator delivering precise waveform generation to 21 MHz. This message-based module generates sine, square, triangle, and ramp waveforms with 11-digit frequency resolution and high stability across a range from 1 µHz to 21 MHz (sine) and up to 11 kHz for complex waveforms. The E1440A supports multi-interval sweep and multi-marker modes, amplitude and phase modulation, and programmable relative phase synchronization for multi-phase signal generation when cascaded with companion modules.
Technical Specifications
• Waveforms: Sine, Square, Triangle, Negative Ramp, Positive Ramp
• Frequency Range: Sine 1 µHz to 21 MHz; Square 1 µHz to 11 MHz; Triangle and Ramps 1 µHz to 11 kHz; TTL Clock 1 µHz to 60 MHz
• Frequency Resolution: 11-digit resolution with high stability
• Output Amplitude: 1 mVp-p to 10 Vp-p in 8 ranges; high-voltage and isolated output options available
• Modulation: AM and PM capabilities
• Sweep: Multi-interval and multi-marker sweep modes
• Memory: Non-volatile save-recall for test setup storage
• Frequency Counter: DC to 200 MHz
– Key Features
• Programmable relative phase output for synchronization with companion modules
• Multi-phase signal generation through cascaded E1440A units
• GPIB support for arbitrary function generator operation with user-defined waveforms
• SCPI-compliant command set
• Isolated floating outputs option
– Typical Applications
• Precision waveform generation in VXI test systems
• Low-distortion sine wave synthesis and characterization
• Modulation testing and signal conditioning
• Sweep-based frequency response measurements
• Multi-phase signal generation for device testing
– Compatibility & Integration
The module integrates into VXIbus systems as a message-based instrument and accepts GPIB commands for extended functionality. Standard VXI backplane integration supports system-level synchronization and control.
