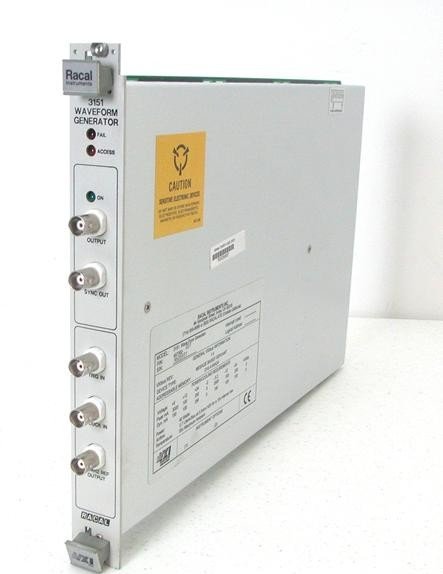

The Astronics / EADS / Racal 3161 is a single-slot VXIbus waveform synthesizer delivering 300 MS/s sampling for high-fidelity arbitrary waveform generation across aerospace, defense, and telecommunications applications. The instrument generates complex signals from 100 µHz to 150 MHz with 12-bit resolution and supports real-time frequency hopping between 256 programmable frequencies, external modulation inputs (AM, PM, FSK), and phase-coherent synchronization to external analog signals up to 18.75 MHz.
## Technical Specifications
• Sampling Rate: 300 MS/s
• Output Frequency Range: 100 µHz to 150 MHz
• Resolution: 12-bit
• Waveform Memory: 256k points standard; 1 Meg points optional
• Harmonics: Typically below -30 dB (150 MHz sine wave)
• Phase Offset Resolution: Programmable in 1-point increments
• Frequency Counter: Built-in 6-digit counter for external signal measurement
• External Sync Bandwidth: Up to 18.75 MHz
## Key Features
• Real-time frequency hopping between 256 selectable frequencies
• Variable clock rates via inter-division ratios (1 to 64k) for memory-efficient sequencing
• Front panel D-sub control for hop selection and modulation inputs
• External modulation: Amplitude Modulation (AM), Phase Modulation (PM), and Frequency Shift Keying (FSK)
• Automatic phase locking to external analog reference signals
• WaveCAD software compatibility for equation-based, freehand, or function-based waveform design
• Waveform import from spreadsheets, math applications, and digitizers
## Typical Applications
Aerospace and defense signal simulation, telecommunications signal generation, frequency-agile test scenarios, and modulated waveform synthesis requiring sub-harmonics control and phase coherence.
## Compatibility & Integration
VXIplug&play drivers supported. Front panel connector maintains backward compatibility with legacy 3151, 3151A, and 3151A+ models. Integrates with WaveCAD waveform design software.
