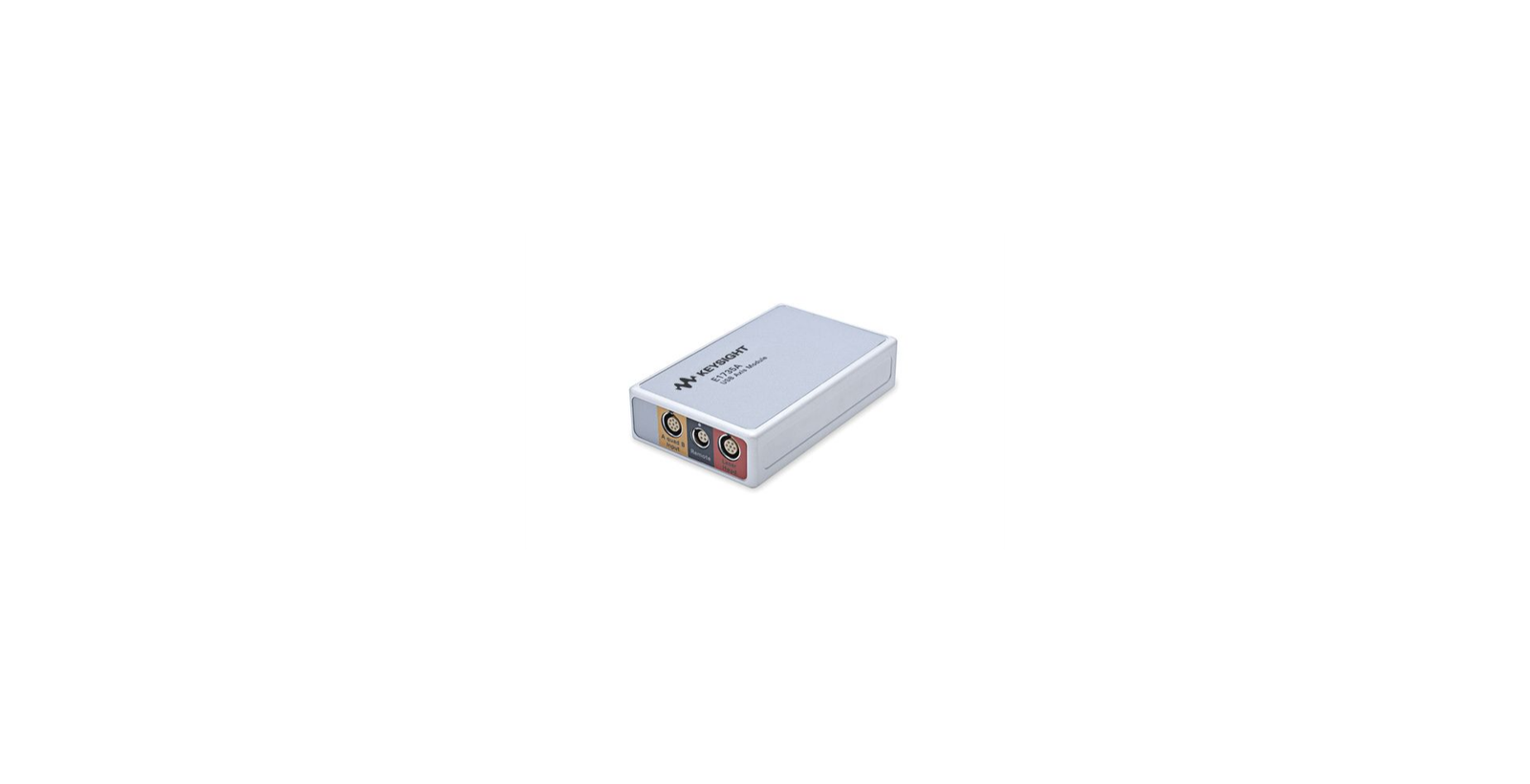

The E1735A USB Axis Module is an electronic interface that connects the Keysight 5519A/B laser head to a host PC within the Keysight 5530 Dynamic Calibrator System. The module provides interfaces for optional remote control units and A-quad-B encoder inputs, enabling precise measurement and control across multiple axes. Communication with the PC occurs via high-speed USB 2.0, supporting Microsoft Windows 98 and later operating systems. Its compact 102 × 63 × 24 mm form factor and 220 g weight facilitate integration into diverse calibration and testing environments.
Technical Specifications
• Communication Interface: High-speed USB 2.0
• Operating System Compatibility: Microsoft Windows 98 or later
• Data Sampling Rate: 100 kHz
• A-quad-B Input Rate: Greater than 2 ns edge-to-edge, or less than 10 MHz
• Measurement Frequency: 100 kHz to 10 MHz
• Linear Interferometer Measurement Range: 0 to 84 m (±42 m)
• Typical Resolution:
– Linear Interferometer: 1 nm
– Plane Mirror Interferometer: 0.5 nm
– Angular Interferometer: 0.006 arc-sec
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Power Requirement: +5 V, 280 mA maximum current (typical)
• Physical Dimensions: 102 × 63 × 24 mm (4.02 × 2.48 × 0.95 in)
• Weight: 220 g (0.48 lb)
– Key Features
• Direct interface with 5519A/B laser heads for real-time measurement acquisition
• Dual encoder support accommodates optional A-quad-B inputs for machine feedback
• Submicron resolution across multiple interferometer configurations
• USB 2.0 connectivity eliminates external power supplies and complex cabling
– Typical Applications
• Dynamic calibration systems requiring laser-based position measurement
• Machine tool and precision equipment validation
• A-quad-B encoder signal acquisition and processing
– Compatibility & Integration
The E1735A integrates into the Keysight 5530 Dynamic Calibrator System and supports 5519A/B laser head connectivity. The included E1735A-001 A-quad-B cable (3 m length) provides unterminated connections for custom encoder integration. Windows 98 through current operating system versions are supported.
