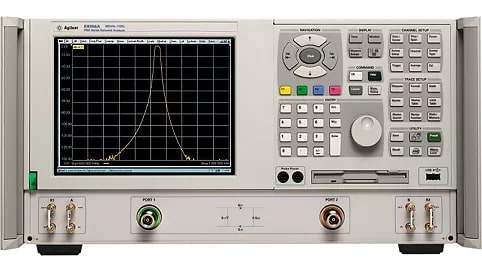

The Keysight E8361C is a 67 GHz PNA microwave network analyzer delivering precision RF and microwave measurements across 10 MHz to 67 GHz. This instrument characterizes complex components and systems with 94 dB dynamic range, sub-microsecond measurement speed (<26 µs/point), and trace noise below 0.006 dB at 1 kHz. It supports on-wafer, in-fixture, waveguide, and antenna measurements alongside advanced applications including mixer conversion loss, amplifier gain compression, harmonic and IMD analysis, and time-domain impedance characterization. The analyzer features up to 32 measurement channels with 20,001 points per channel and accommodates 2 or 4-port configurations with multiport test set compatibility.
Technical Specifications
• Frequency Range: 10 MHz to 67 GHz (operation specified to 70 GHz)
• Dynamic Range: 94 dB at 67 GHz
• Trace Noise: <0.006 dB (1 kHz)
• Measurement Speed: <26 µs/point
• Measurement Channels: Up to 32
• Points per Channel: 20,001
• IF Bandwidth: 10 Hz
• Noise Floor: −114 dBm
• ALC Range: 20 dB
• Ports: 2 or 4 ports with multiport test set support
• Display: 10.4-inch touch screen with click-and-drag markers and zoom
• Weight: 29 kg (64 lb.)
• Max Line Power: 350 W
– Key Features
• TRL/LRM calibrations for on-wafer and fixture measurements
• Electronic calibration (ECal) with fast error correction
• Mixed-mode S-parameters and advanced fixture corrections
• Time-domain analysis for impedance measurement and device troubleshooting
• Pulsed-RF and converter test capabilities
• Antenna/RCS characterization
• LAN (10/100BaseT Ethernet), GPIB/SICL, and DCOM interfaces
• USB and internal hard disk storage with remote file server mapping
– Typical Applications
• Mixer conversion loss and isolation measurements
• Amplifier gain compression and harmonic analysis
• Intermodulation distortion (IMD) testing
• Return loss and absolute group delay characterization
• Antenna and RCS measurements
– Compatibility & Integration
• Compatible with Keysight ECal modules (N4693A, N4694A) and calibration kits (85056A, 85058B)
• Windows operating system for automation and peripheral connectivity
• Multiport test set compatible
