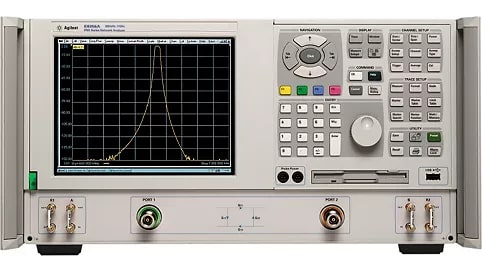

The Agilent/Keysight E8356A is a 2-port vector network analyzer operating from 300 kHz to 3 GHz, engineered for precise RF and microwave component characterization in R&D and manufacturing environments. It delivers 128 dBm dynamic range, 10 dBm output power, and low trace noise across fast sweep speeds. The instrument supports S-parameter and impedance measurements, time domain analysis, and advanced calibration methods including TRL/LRM calibration for in-fixture and on-wafer devices. Standard bias-tees enable active device testing, while direct receiver access extends measurement dynamic range. Mixer and converter measurements benefit from frequency-offset mode and advanced mixer calibrations (VMC, SMC). Optional electronic calibration (ECal) provides precision, single-connection, multi-port calibration. The analyzer runs embedded Windows, supports SCPI commands and COM programming, and includes automation and self-help tools. Standard 3.5mm or 2.4mm connectors accommodate various test configurations.
Technical Specifications
• Frequency Range: 300 kHz to 3 GHz
• Number of Ports: 2
• Dynamic Range: 128 dBm
• Output Power: 10 dBm
• Weight: 50 lbs
• Dimensions: 24 × 20 × 16 inches
– Key Features
• S-parameter and impedance characterization
• Time domain analysis for device troubleshooting
• TRL/LRM calibration with four-receiver enablement
• Adapter removal and unknown thru calibration support
• Optional electronic calibration (ECal)
• Standard bias-tees for active device testing
• Direct receiver access for extended dynamic range
• Frequency-offset mode and advanced mixer calibrations (VMC, SMC)
• Low trace noise across measurement range
• Embedded Windows operating system with SCPI and COM support
– Typical Applications
• RF component characterization
• Microwave device testing
• In-fixture and on-wafer measurements
• Mixer and converter analysis
• Active device bias and characterization
– Compatibility & Integration
• Standard 3.5mm and 2.4mm connector options
• SCPI command programming
• COM (Component Object Model) interface
• Embedded Windows-based automation and control
