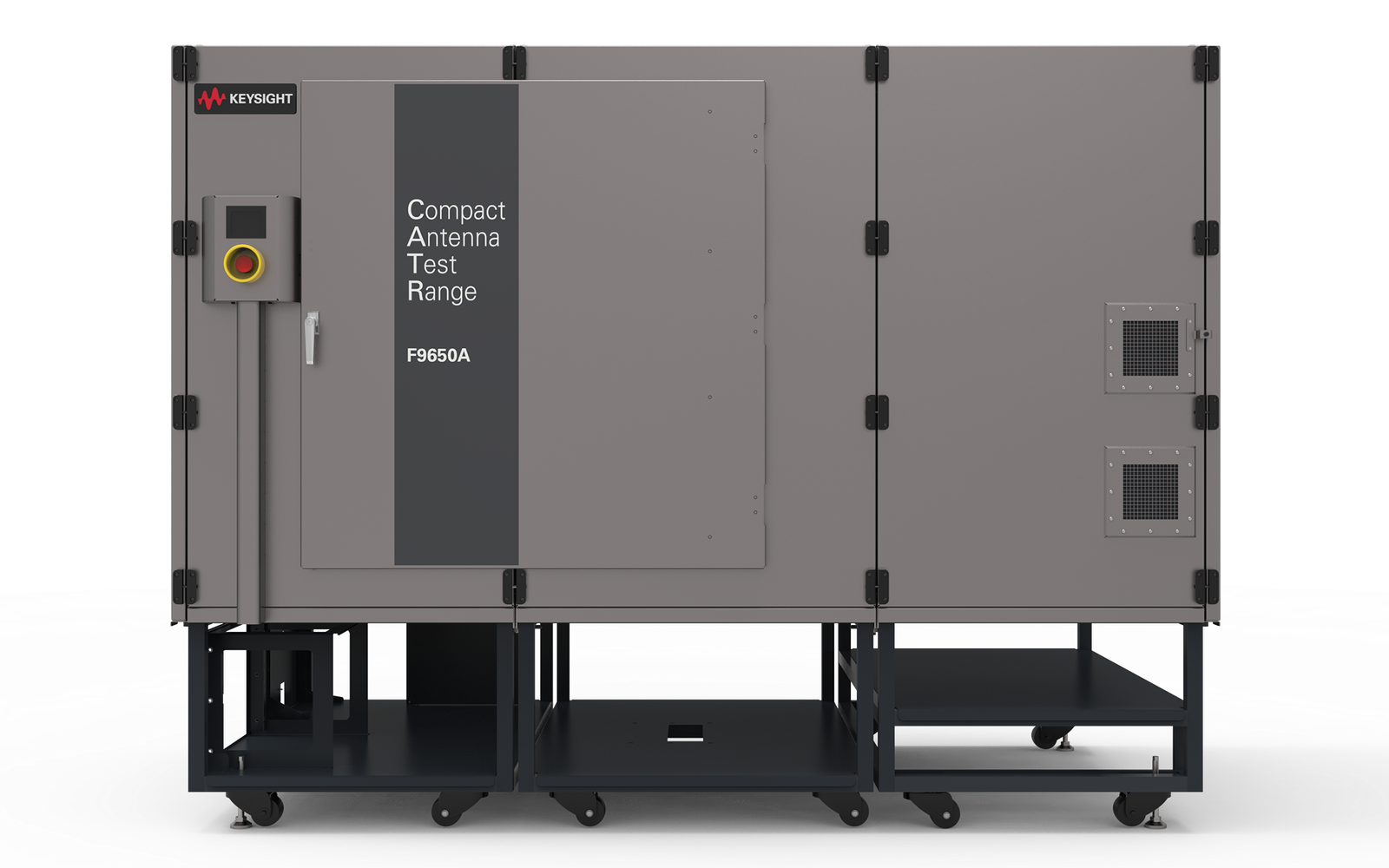

The Keysight F9650A is a Compact Antenna Test Range (CATR) chamber engineered for over-the-air (OTA) characterization of wireless devices and antenna systems at millimeter-wave frequencies. It delivers a controlled anechoic environment with a rolled-edge parabolic reflector and dual-polarized feed horn assembly, enabling accurate RF performance measurements across 5G NR design verification, RF conformance, radio resource management (RRM), angle of arrival (AoA), RF demodulation, and carrier acceptance testing in compliance with 3GPP standards and certification bodies including GCF, PTCRB, and CTIA.
Technical Specifications
Frequency Coverage
• 6 to 110 GHz (spurious probe feed assembly)
• 24 to 42 GHz (in-band probe feed assembly)
Quiet Zone
• 30 cm diameter (5G FR2 bands)
• 45 cm diameter (optional)
RF Performance
• Path loss: 61.5 to 64.4 dB
• Phase variation: 10 to 17 degrees at 39 GHz
• Cross polarization: -30 dB
• Amplitude ripple: ±0.5 dB
• Amplitude taper: 1 dB
• Feed gain: 15 dBi
• Isolation: >70 dB typical; >75 dB nominal
Positioner System
• Roll-over-azimuth mechanism with ±180° roll and ±165° azimuth range
• 0.01° resolution; 0.1° accuracy
• Standard and high-torque options
Chamber & Construction
• Shielded anechoic enclosure with aluminum frame and panels
• 120 mm pyramidal anechoic foam treatment
• Physical dimensions: 2.8 m L × 1.6 m W × 2.0 m H
• Weight: 585 kg
Environmental & Power
• Operating temperature: -10 to 55 °C
• Optional extreme temperature testing capability
• 320 W input; 110 V / 220 V AC
– Key Features
• Dual-polarized feed horn assembly with motorized roll control
• USB 3.0 interface for positioner and data acquisition control
• Triggered data acquisition capability
• Crosshair laser alignment guide and LED lighting
• Integral USB camera for DUT observation
• Chamber control software included
• Probe feed options covering in-band and spurious frequency ranges
• Optional calibration kits for chamber validation
• 3GPP FR1 and FR2 link antenna options
– Typical Applications
• 5G mmWave device RF design verification and conformance testing
• Radio resource management and angle-of-arrival measurements
• RF demodulation and carrier acceptance characterization
• Device certification workflows per 3GPP specifications
– Compatibility & Integration
The F9650A integrates with Keysight network emulation solutions, spectrum analyzers, signal sources, and network analyzers to support extended RF measurement workflows across design, verification, and acceptance phases.
