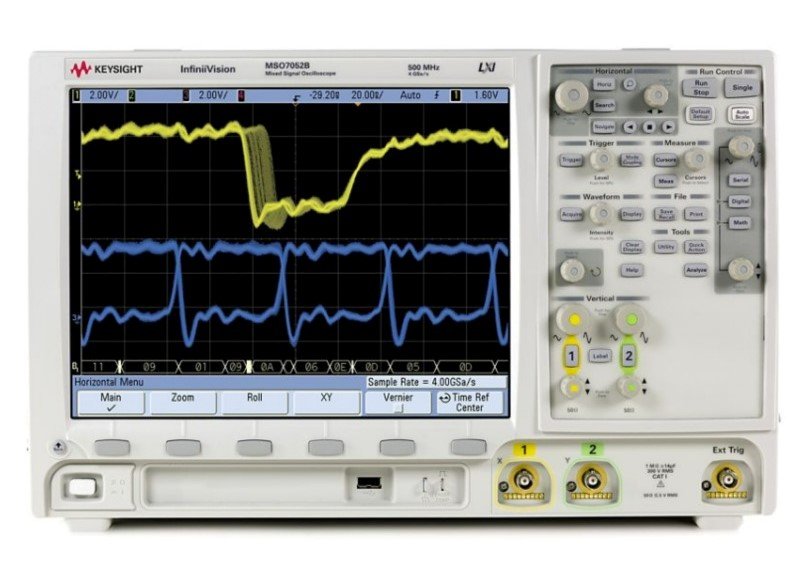

The Agilent/Keysight MSO7052B is a 500 MHz mixed-signal oscilloscope engineered for embedded design debugging and complex signal analysis across analog and digital domains. This 2-channel, 16-digital-channel instrument delivers 4 GSa/s sampling with 8 Mpts of MegaZoom III deep memory, capturing intermittent events and subtle signal details. The 12.1-inch XGA display with 256 intensity levels provides enhanced signal visibility at waveform update rates reaching 100,000 wfms/s. High-resolution 12-bit vertical capture in single-shot mode enables detailed signal characterization.
Technical Specifications
• Bandwidth: 500 MHz
• Analog Channels: 2
• Digital Channels: 16
• Maximum Sample Rate: 4 GSa/s
• Memory Depth: 8 Mpts (MegaZoom III)
• Waveform Update Rate: Up to 100,000 wfms/s
• Display: 12.1-inch XGA with 256 intensity levels
• Vertical Resolution: Up to 12 bits (High Resolution Mode, real-time single-shot)
– Key Features
• Multiple acquisition modes: Normal, Average, Peak Detect, and High Resolution (Smoothing)
• 23 automatic measurements including voltage and time parameters via QuickMeas
• Cursor measurements with Manual, Track, and Auto modes
• Math functions: Add, Subtract, Multiply, FFT
• Advanced triggering including analog HDTV and USB, with optional CAN, FlexRay, I²C, I²S, LIN, MIL-STD 1553, SPI, and UART/RS232 support
• Mixed-signal triggering and automatic search/navigate for serial data
• Segmented Memory capability (upgrade option)
• Mask Testing functionality (upgrade option)
• Serial data decoding options for I2C, SPI, CAN, LIN, RS232, FlexRay, and MIL-STD 1553
• FPGA debugging support with tailored mixed-signal software
– Typical Applications
• Embedded system design and validation
• FPGA development and debugging
• Mixed-signal protocol analysis
• Intermittent fault capture and glitch detection
• Long-duration signal recording at high sample rates
– Connectivity
• USB and LAN ports for data transfer, printing, and sharing
• USB Host ports available
• XGA video output for external display
