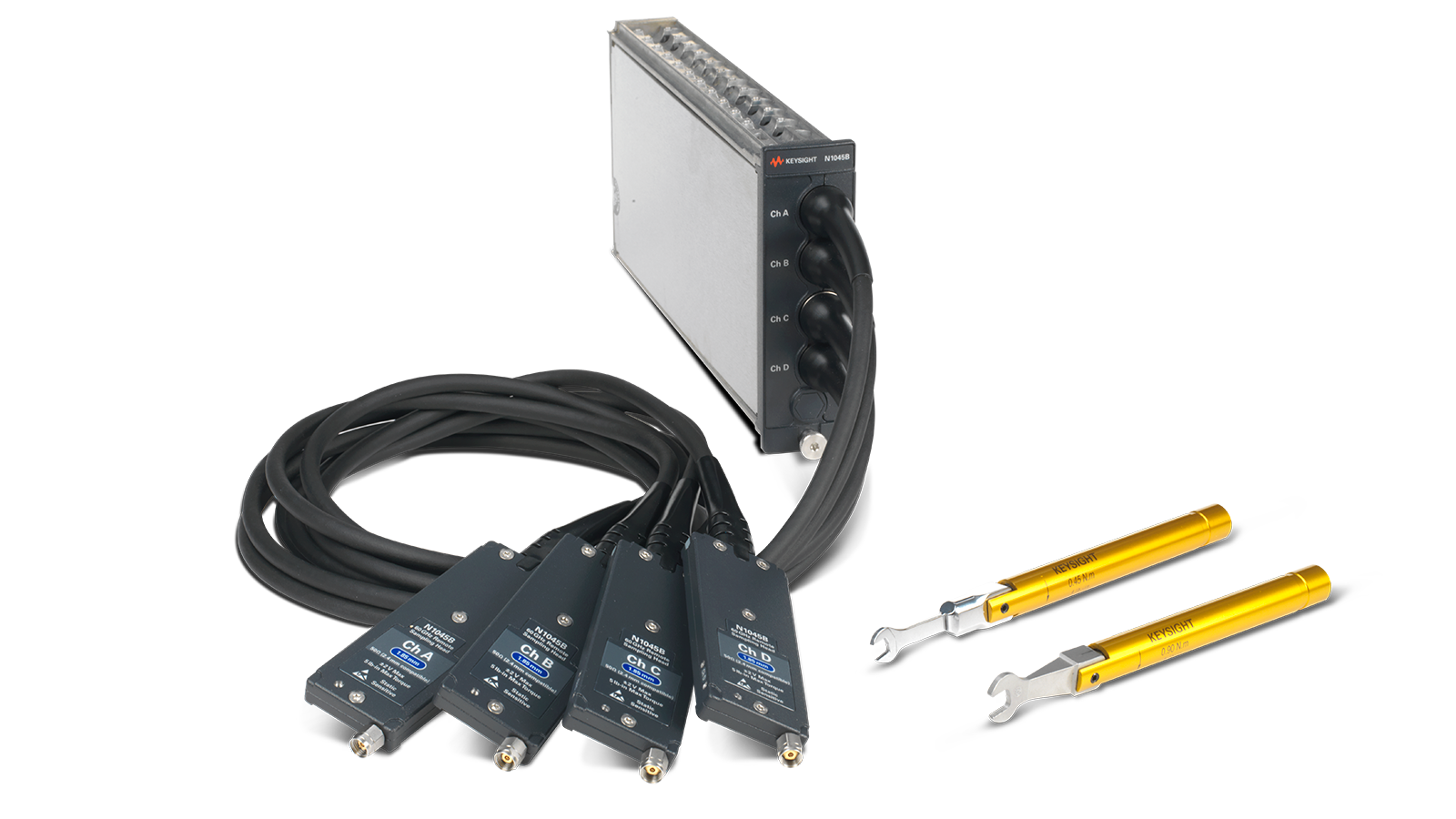

The Keysight N1045B is a 60 GHz electrical remote sampling head for high-bandwidth characterization of signals in signal integrity and high-speed digital design applications. This sampling module integrates with the N1000A DCA-X mainframe and N1010A FlexDCA software to deliver precision equivalent-time sampling with 90 fs rms intrinsic jitter. Available in 2-channel or 4-channel configurations, the N1045B supports user-selectable bandwidth settings from 20 GHz to 60 GHz (typical 65 GHz), accommodating a filter range of 10 GHz to 70 GHz. The module features 1.85 mm electrical connectors with male or female termination options, handles maximum input voltages of +2V, and achieves a maximum sample rate of 250 kSa/s. TDR/TDT capability enables comprehensive device and transmission line characterization.
Technical Specifications
• Bandwidth: 60 GHz (65 GHz typical); user-selectable: 20 GHz, 35 GHz, 45 GHz, 60 GHz
• Filter Range: 10 GHz to 70 GHz
• Channel Count: 2 or 4 electrical channels (user-selectable)
• Electrical Connectors: 1.85 mm male or female; compatible with 2.4 mm adapters
• Maximum RF Input Connector Torque: 5 lb-in
• Maximum Input Voltage: +2V
• Intrinsic Jitter: 90 fs rms
• Sample Rate: 250 kSa/s maximum
• Weight: Approximately 5 lb
– Key Features
• Equivalent-time sampling architecture for precise waveform capture
• TDR/TDT measurement support for transmission line analysis
• User-configurable bandwidth reduces acquisition time on lower-bandwidth signals
• Dual connector options (male/female) for flexible integration
• Installation Category II, Pollution Degree 2 rated per IEC 1010
– Typical Applications
• High-speed digital signal verification and characterization
• Signal integrity analysis on microwave and millimeter-wave devices
• Time-domain reflectometry and transmission measurements
• Device validation under equivalent-time sampling conditions
– Compatibility & Integration
• Mainframe: Keysight N1000A DCA-X
• Software: N1010A FlexDCA Sampling Oscilloscope
