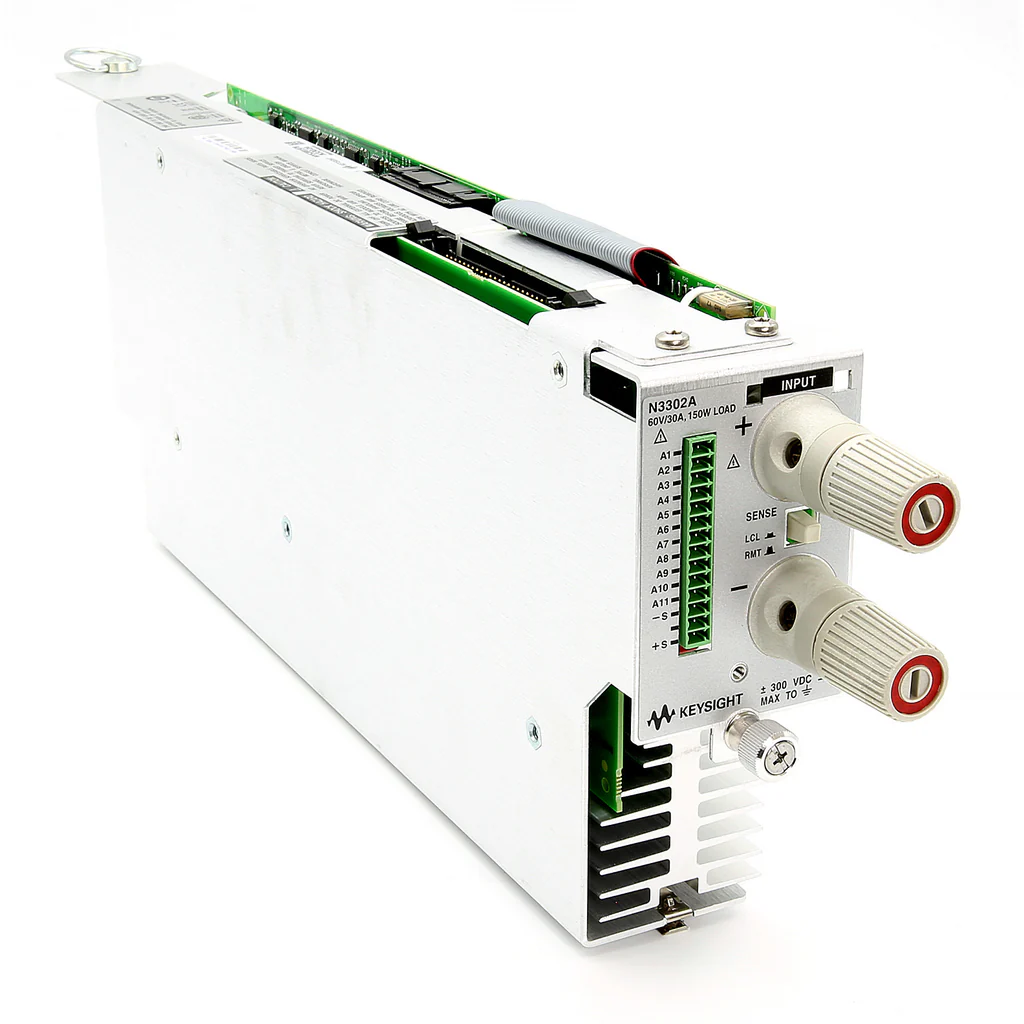

The Keysight N3302A is a 150 W electronic load module engineered for integration into N3300A or N3301A mainframes. It operates in constant current (CC), constant voltage (CV), and constant resistance (CR) modes with 16-bit measurement precision across voltage, current, and power. The module handles 0–60 V and 0–30 A inputs, operates stably down to zero volts, and digitizes waveforms for advanced power source characterization. Multiple modules can be installed in a single mainframe to test multiple power sources or outputs simultaneously under unified GPIB control, significantly accelerating ATE throughput and test cycle times.
Technical Specifications
Input Ratings
• Maximum voltage: 0–60 V
• Maximum current: 0–30 A
• Power rating: 150 W
Constant Current Mode
• Low range: 3 A; high range: 30 A
• Regulation: 10 mA
• Accuracy: 0.1% + 5 mA (low range), 0.1% + 10 mA (high range)
Constant Voltage Mode
• Low range: 6 V; high range: 60 V
• Regulation: 5 mV
• Accuracy: 0.1% + 3 mV (low range), 0.1% + 8 mV (high range)
Constant Resistance Mode
• 0.067–4 Ω (I > 10% rating)
• 3.6–40 Ω (I > 1% rating)
• 36–400 Ω (I > 0.1% rating)
• 360–2000 Ω (I > 0.01% rating)
Measurement Capabilities
• Current: 0.05% + 3 mA (3 A range), 0.05% + 6 mA (30 A range)
• Voltage: 0.05% + 3 mV (6 V range), 0.05% + 8 mV (60 V range)
• Power: 0.1% + 0.4 W
• 16-bit resolution across all measurements
– Key Features
• Waveform digitization for transient analysis
• Zero-volt operation with full stability
• Single GPIB address controls all modules within mainframe
• Occupies one slot in N3300 Series mainframe
– Typical Applications
• DC power source validation and characterization
• Multi-output power supply testing
• Component electrical performance evaluation
• Automated test system integration
– Compatibility & Integration
Designed exclusively for N3300A or N3301A Electronic Load Mainframes. Multiple N3302A modules can operate in parallel for distributed load testing.
